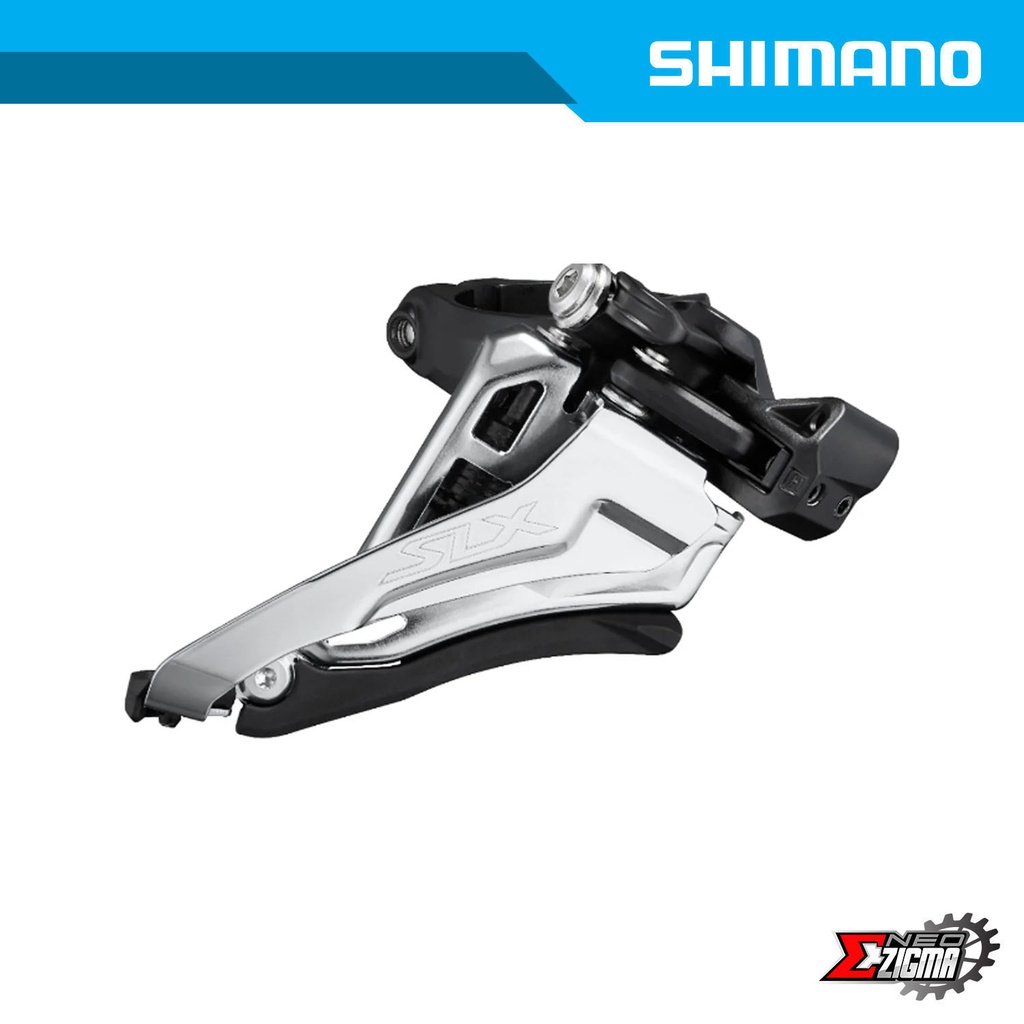

SLX - Front Derailleur - SIDE SWING - Clamp Band Mount - MTB 2x12-speed
The SLX M7000 series front derailleurs deliver light action, and confidant, secure shifting for aggressive trail riding. They offer an extra wide gear range with a front double 36-26T combination.
FEATURES
- Maintain focus and fun on rough, uneven terrain.
- Increased traction range and no chain rub for long travel bikes
- SIDE SWING Front Derailleur
- Extra wide range with front double 36-26T
- Wide frame mounting compatibility
- Available in D, E, and M-type mounts
- *M type mount requires adapter (ø34.9 mm)
- Greater tire clearance
- Compatible with 2.3-inch tire on wider rims
- Greater compatibility
- One spec for 48.8 mm & 51.8 mm chainline
PRODUCT SPECIFICATIONS
| MODEL NO | FD-M7100-M |
|---|
| SERIES | SLX M7100 Series |
|---|
| Color | Series color |
|---|
| Average weight | 114 |
|---|
| Remarks | * S-size adapter is available in OTC package only Chain line 48.8 mm, 51.8 mm compatible |
|---|
| Front speeds | 2 |
|---|
| Rear speeds | 12 |
|---|
| Compatible chain | HG 12-speed |
|---|
| Action|SIDE SWING | ✔ |
|---|
| Mount|Clamp Band (mm)|28.6 | - * |
|---|
| Mount|Clamp Band (mm)|31.8 | X (w/ M size adapter) |
|---|
| Mount|Clamp Band (mm)|34.9 | ✔ |
|---|
| Mount|E-type|With bottom bracket plate | ✔ |
|---|
| Cable route type|Front-Pull | ✔ |
|---|
| Chain line (mm) | 48.8 (142 mm O.L.D.) 51.8 (148 mm O.L.D.) |
|---|
| Chain stay angle (deg.) | 66-69 |
|---|
| Top gear teeth | 36-38T |
|---|
| Total capacity | 10T |
|---|
| Angled stroke adjust screw | ✔ |
|---|
| Angled clamp band design | ✔ |
|---|
| Link bushings | 6 |
|---|
