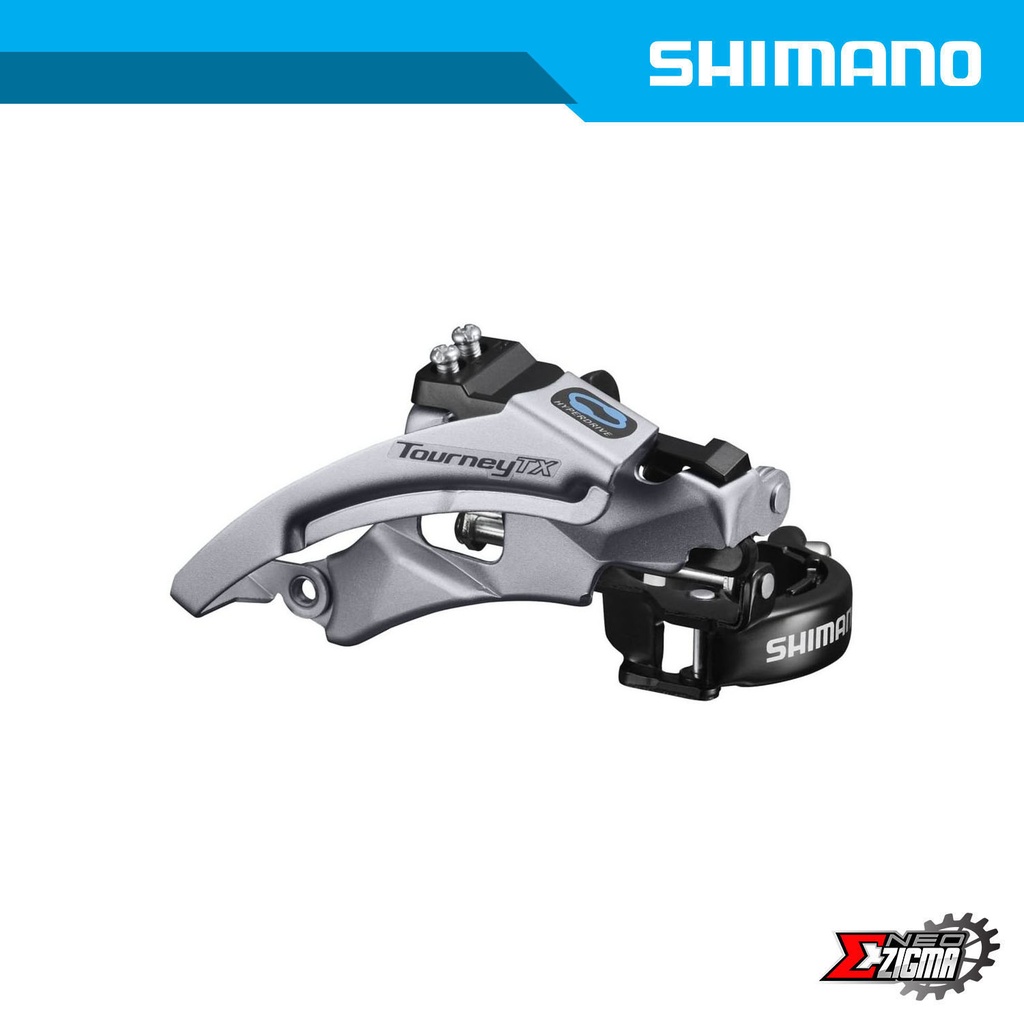

SHIMANO TOURNEY TX - Front Derailleur - TOP SWING - Clamp Band Mount - 3x8/7-speed
The SHIMANO TOURNEY TX800 front derailleur offers precise shifting with HYPERDRIVE technology for 3x8 speed drivetrains.
PRODUCT SPECIFICATIONS
| MODEL NO | FD-TX800-TS6 |
|---|
| SERIES | TOURNEY TX800 Series |
|---|
| Color | Series color |
|---|
| Front speeds | 3 |
|---|
| Rear speeds | 8/7 |
|---|
| Compatible chain | HG 8/7/6-speed |
|---|
| Action|TOP SWING | ✔ |
|---|
| Mount|Clamp Band (mm)|28.6 | X (w/ S size adapter) |
|---|
| Mount|Clamp Band (mm)|31.8 | X (w/ M size adapter) |
|---|
| Mount|Clamp Band (mm)|34.9 | ✔ |
|---|
| Cable route type|Dual-Pull | ✔ |
|---|
| Chain line (mm) | 47.5/50 |
|---|
| Chain stay angle (deg.) | 66-69 |
|---|
| Top gear teeth | 42T/48T |
|---|
| Total capacity | 20T |
|---|
| Applicable top-mid tooth difference | 10T |
|---|
| Angled clamp band design | ✔ |
|---|
