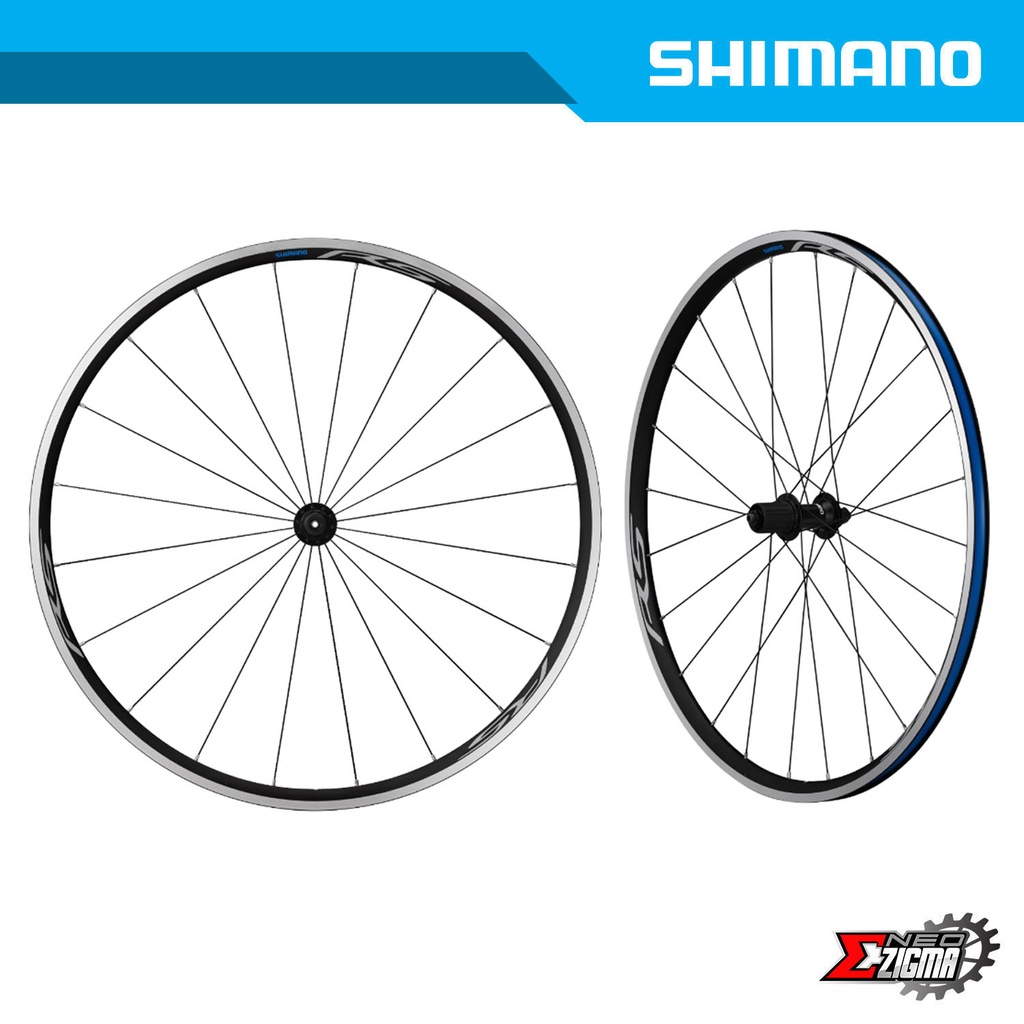

RS100 - Clincher - Rim Brake - Front Wheel
RS100 Clincher Front Wheel
PRODUCT SPECIFICATIONS
| MODEL NO | WH-RS100-CL-F |
|---|
| SERIES | TIAGRA 4700 Series |
|---|
| Color | Black |
|---|
| Average weight | 827 |
|---|
| Model name | WH-RS100-CL |
|---|
| Specification | F |
|---|
| Color|1 Hub shell | Black |
|---|
| Color|1 Quick release | Black |
|---|
| Front/Rear | Front |
|---|
| Brake type | Rim brake |
|---|
| O.L.D. (mm) | 100 |
|---|
| Wheel Size | 622 x 17C |
|---|
| Tire|Type | Clincher |
|---|
| Tire|Recommended size | 23-622 - 32-622 |
|---|
| Rim|Height (mm) | 24 |
|---|
| Rim|Internal width (mm) | 17 |
|---|
| Rim|External width (mm) | 23.2 |
|---|
| Rim|Rim joint | Sleeved |
|---|
| Rim|Requires rim tape | 18-622 |
|---|
| Spokes|Number | 20 |
|---|
| Spokes|Diameter (mm) | 2 |
|---|
| Axle fixing method | Quick release |
|---|
| Quick release skewer length (mm)|133 | ✔ |
|---|
| Seal|Hub | Contact |
|---|
| Reflector|JIS/CPSC | CATEYE RR-550-WUW SW |
|---|
| Reflector|AS | CATEYE RR-550-WUA SW |
|---|
| Reflector|DIN | CATEYE RR-317-WUA SW |
|---|
RS100 - Clincher - Rim Brake - Rear Wheel
RS100 Clincher Rear Wheel
PRODUCT SPECIFICATIONS
| MODEL NO | WH-RS100-CL-R |
|---|
| SERIES | TIAGRA 4700 Series |
|---|
| Color | Black |
|---|
| Average weight | 1105 |
|---|
| Remarks | * The adapter is needed to use 10-speed cassette sprocket |
|---|
| Model name | WH-RS100-CL |
|---|
| Specification | R |
|---|
| Color|1 Hub shell | Black |
|---|
| Color|1 Quick release | Black |
|---|
| Front/Rear | Rear |
|---|
| Brake type | Rim brake |
|---|
| Rear speeds | 11/10* |
|---|
| O.L.D. (mm) | 130 |
|---|
| Wheel Size | 622 x 17C |
|---|
| Tire|Type | Clincher |
|---|
| Tire|Recommended size | 23-622 - 32-622 |
|---|
| Rim|Height (mm) | 24 |
|---|
| Rim|Internal width (mm) | 17 |
|---|
| Rim|External width (mm) | 23.2 |
|---|
| Rim|Rim joint | Sleeved |
|---|
| Rim|OFFSET RIM | ✔ |
|---|
| Rim|Requires rim tape | 18-622 |
|---|
| Spokes|Number | 24 |
|---|
| Spokes|Diameter (mm) | 2 |
|---|
| Axle fixing method | Quick release |
|---|
| Quick release skewer length (mm)|163 | ✔ |
|---|
| Quick release skewer length (mm)|168 | ✔ |
|---|
| HG spline (ROAD 11-speed) | ✔ |
|---|
| Engagement type | Pawl ratchet |
|---|
| Seal|Hub | Contact |
|---|
| Seal|FREEHUB body | Contact |
|---|
| Compatible spoke protector | CP-WH24 CP-FH53 (34T) |
|---|
| Reflector|JIS/CPSC | CATEYE RR-550-WUW SW |
|---|
| Reflector|AS | CATEYE RR-550-WUA SW |
|---|
| Reflector|DIN | CATEYE RR-317-WUA SW |
|---|
