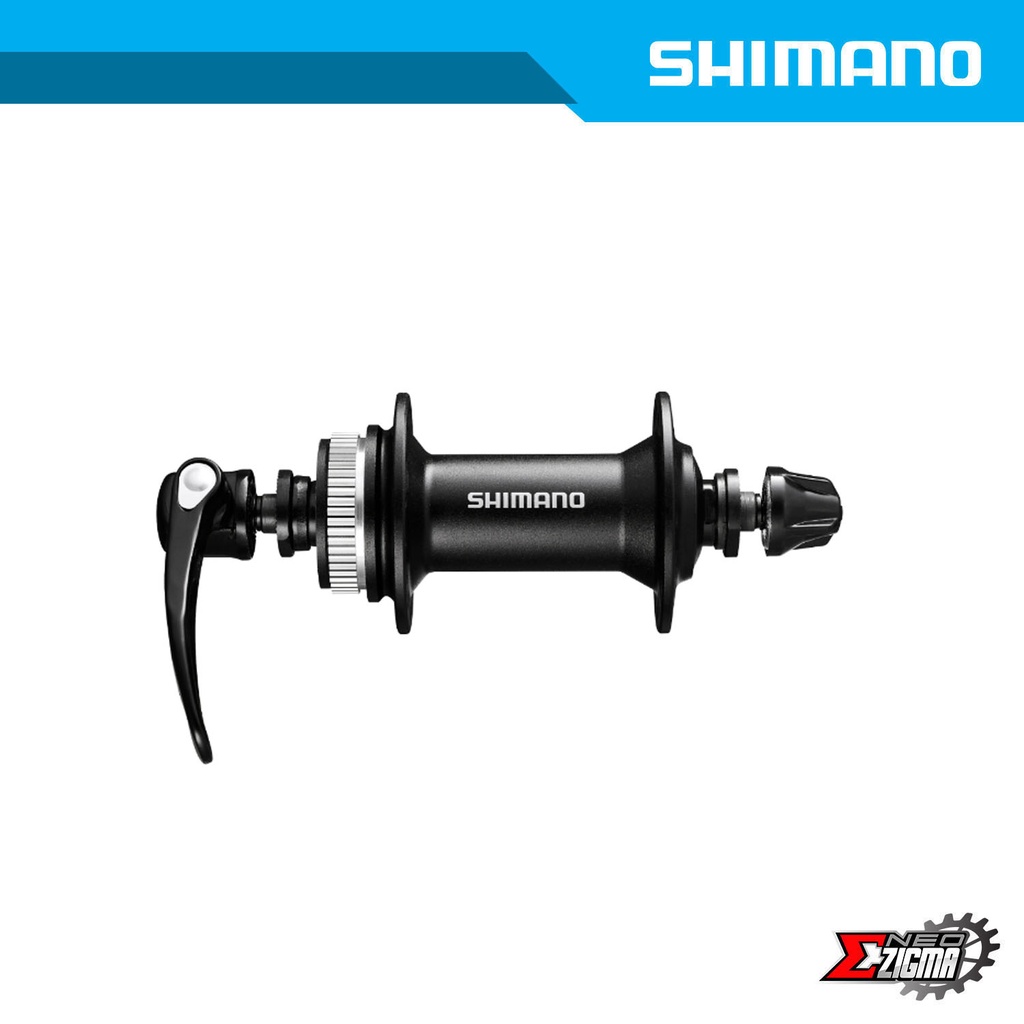

SHIMANO ALIVIO - Front Hub - CENTER LOCK - Disc Brake - Quick Release
Available in silver and black, the SHIMANO ALIVIO HB-M4050 offers long durability thanks to its high quality seals and cup and cone bearings. It is compatible with CENTER LOCK disc rotors and quick release dropouts.
PRODUCT SPECIFICATIONS
| MODEL NO | HB-M4050 |
|---|
| SERIES | SHIMANO ALIVIO M4000 Series |
|---|
| Color | Black | Silver |
|---|
| Color|1 Hub shell | Black |
|---|
| Color|1 Quick release | Black |
|---|
| Color|2 Hub shell | Silver |
|---|
| Color|2 Quick release | Silver |
|---|
| Brake type | CENTER LOCK disc brake |
|---|
| O.L.D. (mm) | 100 |
|---|
| Spoke hole|32H | ✔ |
|---|
| Spoke hole|36H | ✔ |
|---|
| External serration disc brake rotor lock ring|without | ✔ |
|---|
| Axle fixing method | Quick release |
|---|
| Quick release skewer length (mm)|133 | ✔ |
|---|
| Flange distance (mm) | 60.2 |
|---|
| Offset (mm) | 5.6 |
|---|
| P.C.D. left / right (mm) | 44/44 |
|---|
| Flange diameter (mm) | 52.8 |
|---|
| Flange diameter Left/Right (mm) | 52.8 |
|---|
| Seal | Labyrinth & Contact |
|---|
