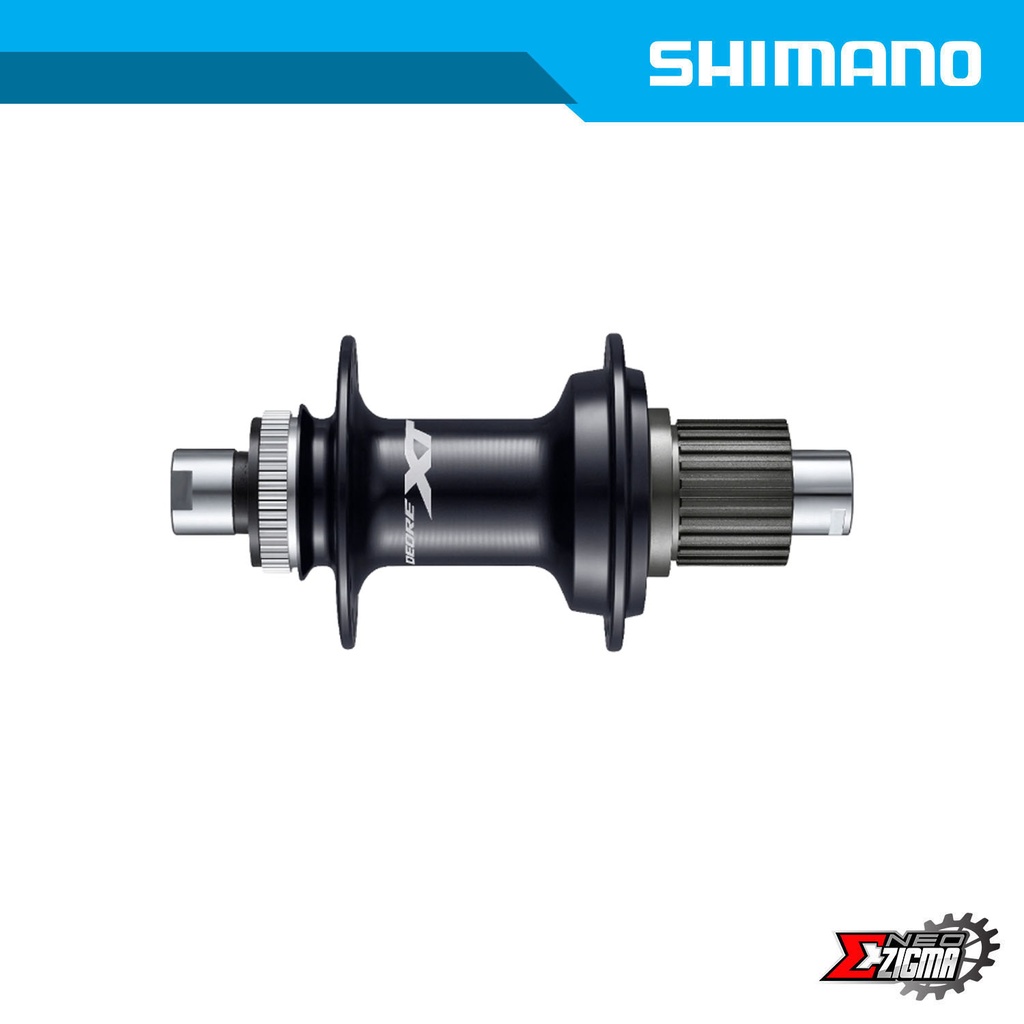

SHIMANO DEORE XT - Rear FREEHUB - MICRO SPLINE - CENTER LOCK - Disc Brake - 148x12 mm E-THRU Axle - 12-speed
Compatible with 12-speed MICRO SPLINE cassettes.
FEATURES
- Faster acceleration amplifies riding excitement
- Smaller spline diameter for 10T top gear by MICRO SPLINE
- Simple setup and reliable trail performance
- Easy disc brake rotor installation with spline mount and lock ring
- CENTER LOCK
- O.L.D.: 148 mm
PRODUCT SPECIFICATIONS
| MODEL NO | FH-M8110-B |
|---|
| SERIES | DEORE XT M8100 Series |
|---|
| Color | Series color |
|---|
| Average weight | 307 |
|---|
| Color|1 Hub shell | Series color |
|---|
| Brake type | CENTER LOCK disc brake |
|---|
| Rear speeds | 12 |
|---|
| O.L.D. (mm) | 148 |
|---|
| Spoke hole|28H | ✔ |
|---|
| Spoke hole|32H | ✔ |
|---|
| Spoke hole|36H | ✔ |
|---|
| 10 tooth cog compatible | ✔ |
|---|
| External serration disc brake rotor lock ring|without | ✔ |
|---|
| Internal serration disc brake rotor lock ring|without | ✔ |
|---|
| Axle fixing method | 12 mm E-THRU |
|---|
| Thru Axle (Length x Inner diameter ; mm)|148 x 12 | ✔ |
|---|
| Flange distance (mm) | 62.16 |
|---|
| Offset (mm) | 6.6 |
|---|
| P.C.D. left / right (mm) | 60/61 |
|---|
| Flange diameter Left/Right (mm) | 68.8/69.8 |
|---|
| MICRO SPLINE | ✔ |
|---|
| Engagement type | Direct engagement |
|---|
| Quick engagement | X (max 7.0 deg.) |
|---|
| Seal|Hub | Labyrinth & Contact |
|---|
| Seal|FREEHUB body | Contact |
|---|
