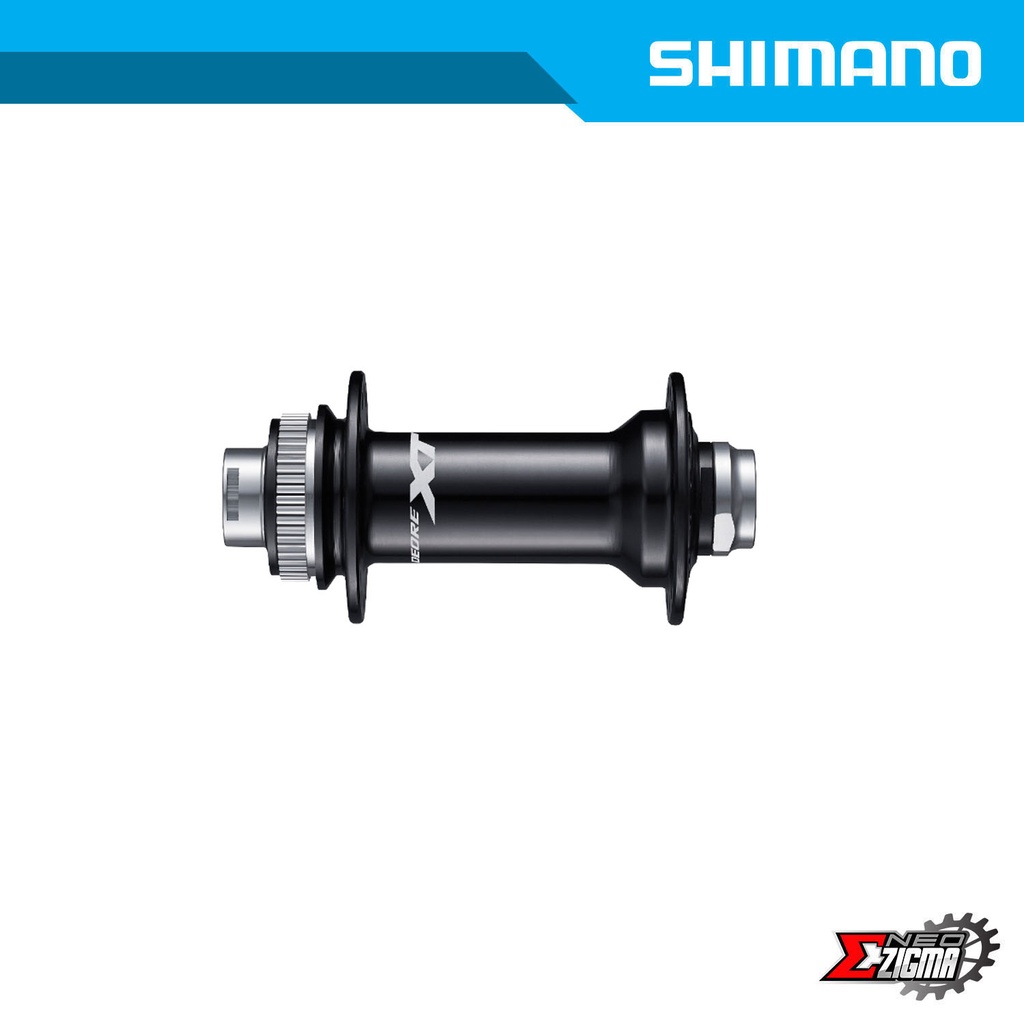

SHIMANO DEORE XT - Front Hub - CENTER LOCK - Disc Brake - 100x15 mm E-THRU Axle
With simple setup and reliable trail performance, the SHIMANO DEORE XT front hub is perfect for custom MTB wheel builds.
FEATURES
- Simple setup and reliable trail performance
- Easy disc brake rotor installation with spline mount and lock ring
- CENTER LOCK
- Toolless 15 mm skewer system optimizes rigidity and weight
- E-THRU axle
- Labyrinth & Contact Sealing
- O.L.D.: 100 mm
PRODUCT SPECIFICATIONS
| MODEL NO | HB-M8110 |
|---|
| SERIES | DEORE XT M8100 Series |
|---|
| Color | Series color |
|---|
| Average weight | 142 |
|---|
| Color|1 Hub shell | Series color |
|---|
| Brake type | CENTER LOCK disc brake |
|---|
| O.L.D. (mm) | 100 |
|---|
| Spoke hole|28H | ✔ |
|---|
| Spoke hole|32H | ✔ |
|---|
| Spoke hole|36H | ✔ |
|---|
| External serration disc brake rotor lock ring|without | ✔ |
|---|
| Axle fixing method | 15 mm E-THRU |
|---|
| Thru axle (length x inner diameter ; mm)|100 x 15 | ✔ |
|---|
| Flange distance (mm) | 60.2 |
|---|
| Offset (mm) | 5.7 |
|---|
| P.C.D. left / right (mm) | 44/44 |
|---|
| Flange diameter (mm) | 52.8 |
|---|
| Flange diameter Left/Right (mm) | 52.8 |
|---|
| Internal grease sleeve | ✔ |
|---|
