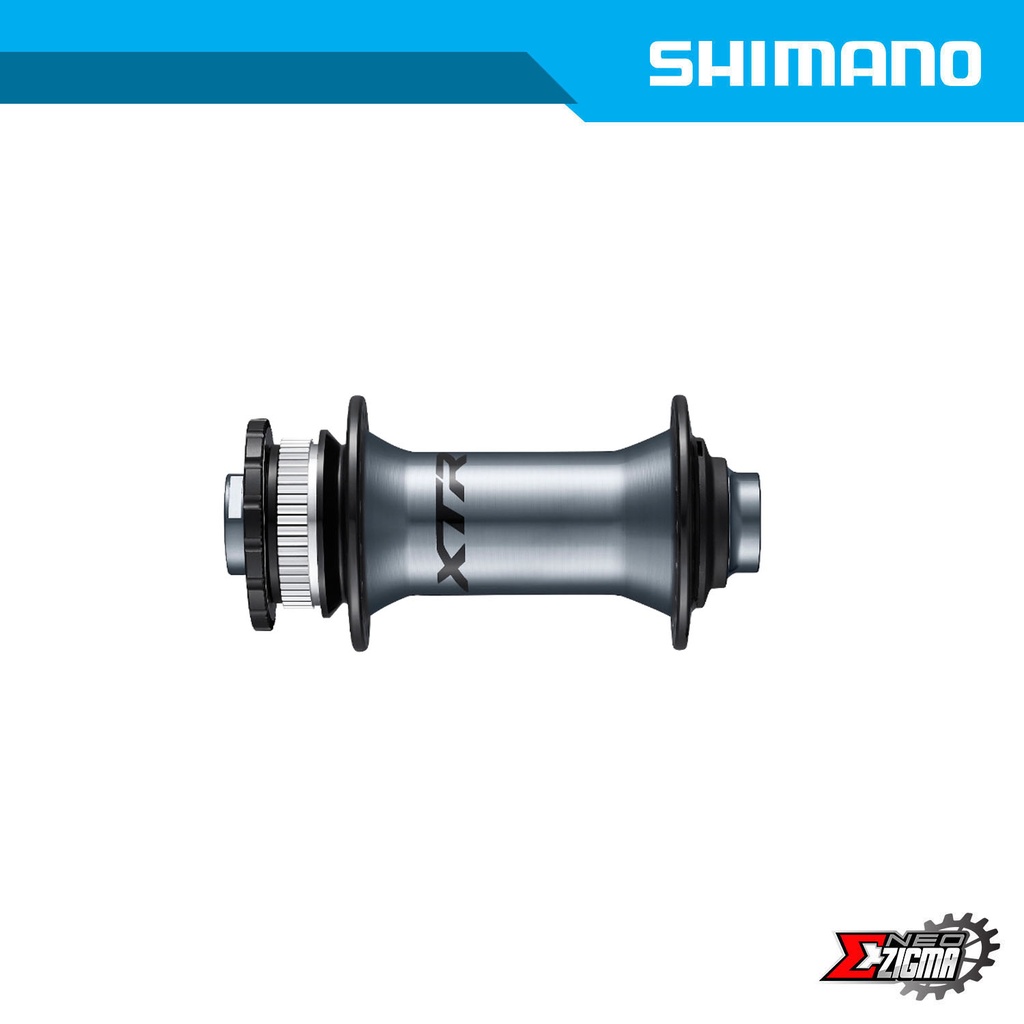

XTR - Front Hub - CENTER LOCK - Disc Brake - 110x15 mm E-THRU Axle
With labyrinth and contact seals, and refined cup and cone surfaces, the XTR front hub is perfect for custom MTB wheel builds.
FEATURES
PRODUCT SPECIFICATIONS
| MODEL NO | HB-M9110-B |
|---|
| SERIES | XTR M9100 Series |
|---|
| Color | Series color |
|---|
| Average weight | 137 |
|---|
| Color|1 Hub shell | Series color |
|---|
| Brake type | CENTER LOCK disc brake |
|---|
| O.L.D. (mm) | 110 |
|---|
| Spoke hole|28H | ✔ |
|---|
| Spoke hole|32H | ✔ |
|---|
| External serration disc brake rotor lock ring|without | ✔ |
|---|
| Axle fixing method | 15 mm E-THRU |
|---|
| Thru Axle (Length x Inner diameter ; mm)|110 x 15 | ✔ |
|---|
| Flange distance (mm) | 70.2 |
|---|
| Offset (mm) | 5.4 |
|---|
| P.C.D. left / right (mm) | 44/44 |
|---|
| Flange diameter (mm) | 52.8 |
|---|
| Flange diameter Left/Right (mm) | 52.8 |
|---|
| Seal | Labyrinth & Contact |
|---|
