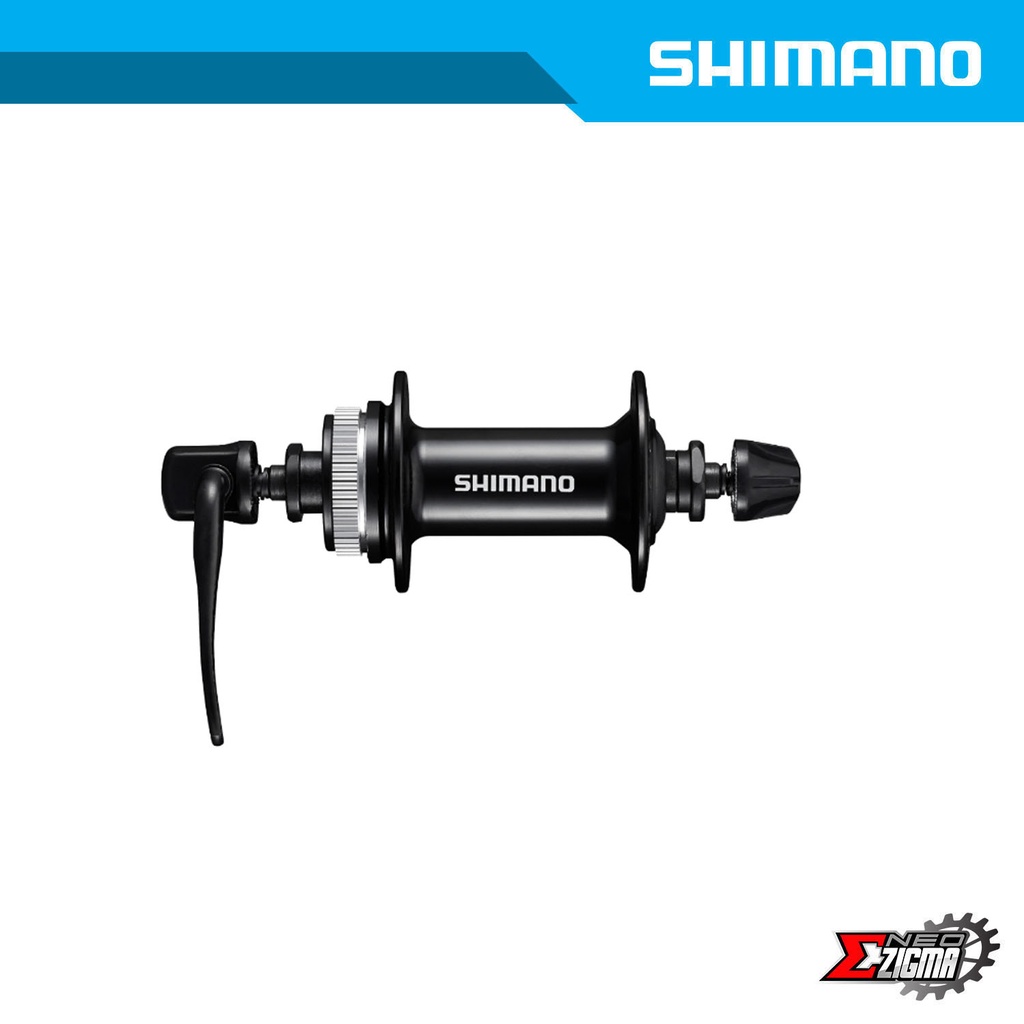

SHIMANO - Front Hub - CENTER LOCK - Disc Brake - Quick Release - MTB
With CENTER LOCK disc rotor mounting, the quick release HB-MT200 front hub offers stiffer wheel rigidity, smooth rotation, and less drag.
FEATURES
- Essential function tailored for entry MTB riders
- Smooth rotation with less drag
- Quick and easy assembly
- CENTER LOCK
PRODUCT SPECIFICATIONS
| MODEL NO | HB-MT200 |
|---|
| SERIES | SHIMANO |
|---|
| Color | Black |
|---|
| Color|1 Hub shell | Black |
|---|
| Color|1 Quick release | Black |
|---|
| Brake type | CENTER LOCK disc brake |
|---|
| O.L.D. (mm) | 100 |
|---|
| Spoke hole|28H | ✔ |
|---|
| Spoke hole|32H | ✔ |
|---|
| Spoke hole|36H | ✔ |
|---|
| External serration disc brake rotor lock ring|without | ✔ |
|---|
| Axle fixing method | Quick release |
|---|
| Quick release skewer length (mm)|133 | ✔ |
|---|
| Flange distance (mm) | 60.2 |
|---|
| Offset (mm) | 5.3 |
|---|
| P.C.D. left / right (mm) | 44/44 |
|---|
| Flange diameter (mm) | 52.8 (32H/36H) 53.8 (28H) |
|---|
| Flange diameter Left/Right (mm) | 52.8 (32H/36H) 53.8 (28H) |
|---|
| Seal | Contact |
|---|
