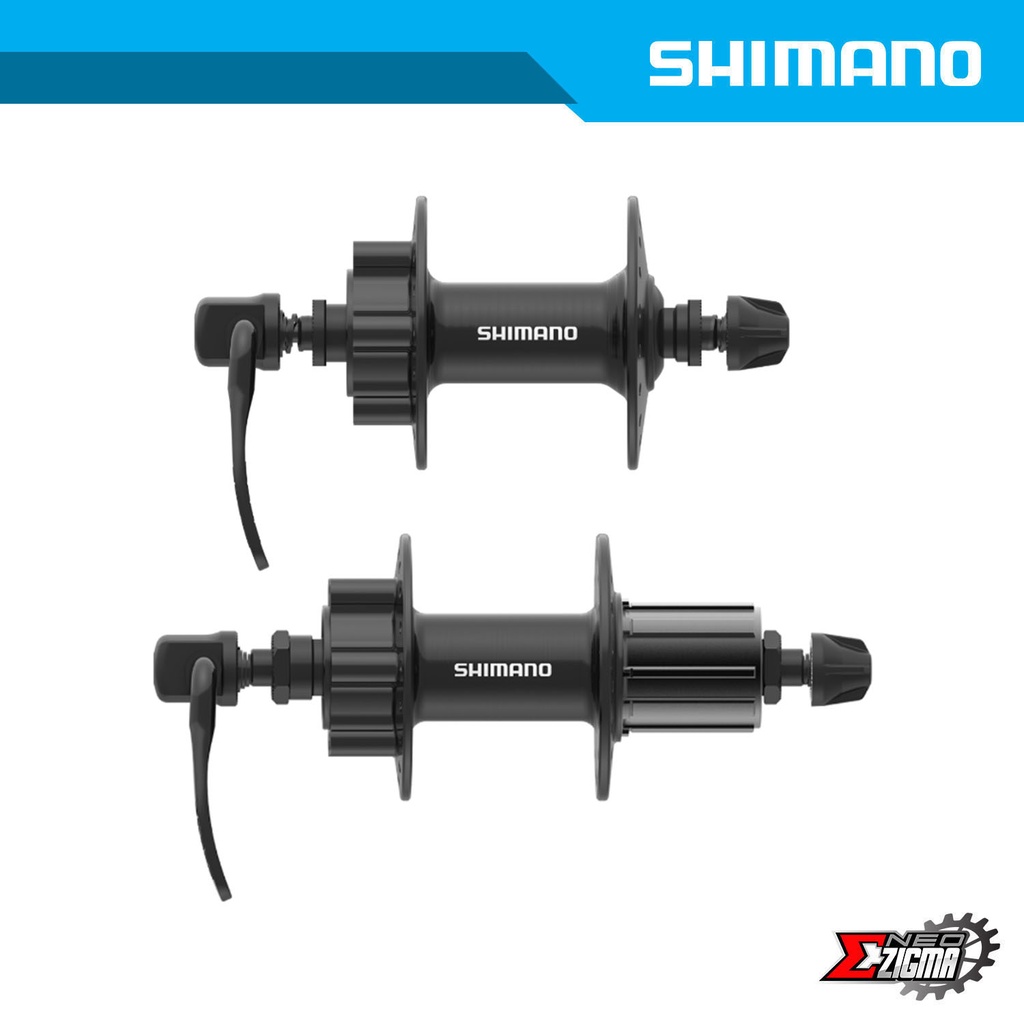

Hub MTB SHIMANO Tourney TX506 6-Bolt Disc Brake F/R

This combination does not exist.

Category: HUB-MTB

Shipping: 2-3 Business Days

SHIMANO - Rear FREEHUB - 6-Bolt Disc Brake - Quick Release - 135 mm O.L.D. - MTB - 8/9/10-speed

Rear FREEHUB for 6-Bolt Disc Brake

FEATURES

SHIMANO - Front Hub - 6-Bolt Disc Brake - Quick Release - 100 mm O.L.D. - MTB

Front Hub for 6-Bolt Disc Brake

Color\|1 Quick release	Black
Brake type	6-bolt disc brake
Rear speeds	10/9/8
O.L.D. (mm)	135
Spoke hole\|32H	✔
Spoke hole\|36H	✔
Axle fixing method	Quick release
Quick release skewer length (mm)\|166	✔
Quick release skewer length (mm)\|170	✔
Flange distance (mm)	56
Offset (mm)	6.1
P.C.D. left / right (mm)	61/61
Flange diameter Left/Right (mm)	70.6
HG spline (Others)	✔
Engagement type	Pawl ratchet
Seal\|Hub	Contact

Color\|1 Quick release	Black
Brake type	6-bolt disc brake
O.L.D. (mm)	100
Spoke hole\|32H	✔
Spoke hole\|36H	✔
Axle fixing method	Quick release
Quick release skewer length (mm)\|133	✔
Flange distance (mm)	58.1
Offset (mm)	5.3
P.C.D. left / right (mm)	61/61
Flange diameter (mm)	70.6
Flange diameter Left/Right (mm)	70.6
Seal	Contact

Size	32H or 36H
