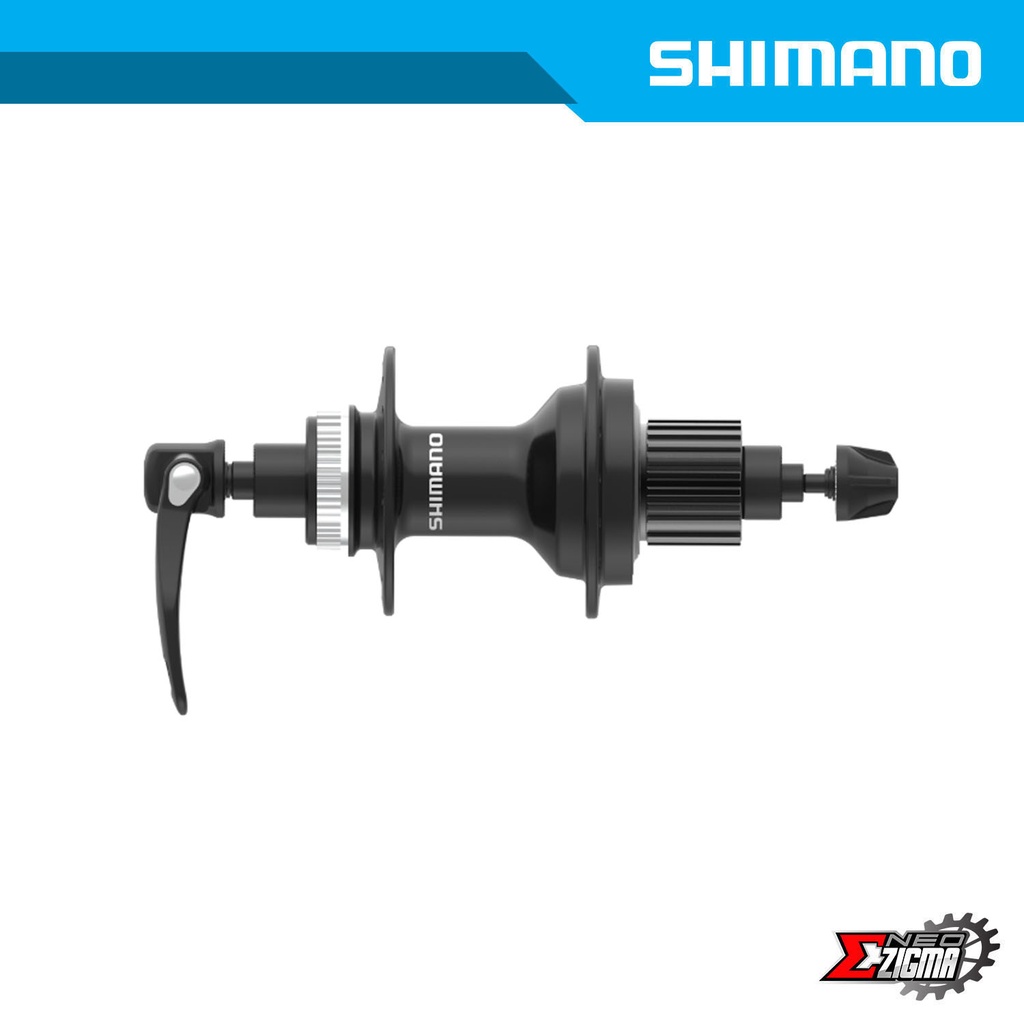

SHIMANO DEORE - Rear FREEHUB - MICRO SPLINE - CENTER LOCK - Disc Brake - Quick Release - 135 mm O.L.D. - 12-speed
SHIMANO DEORE Rear FREEHUB for Disc Brake 135 mm O.L.D. 12-speed
FEATURES
- Simple setup and reliable trail performance
- Easy disc brake rotor installation with spline mount and lock ring
- Quick release axle type
- Labyrinth & Contact Sealing
- Smaller spline diameter for 10T top gear
- O.L.D.: 135 mm
PRODUCT SPECIFICATIONS
| MODEL NO | FH-MT401 |
|---|
| SERIES | SHIMANO |
|---|
| Color | Black |
|---|
| Color|1 Hub shell | Black |
|---|
| Color|1 Quick release | Black |
|---|
| Brake type | CENTER LOCK disc brake |
|---|
| Rear speeds | 12 |
|---|
| O.L.D. (mm) | 135 |
|---|
| Spoke hole|28H | ✔ |
|---|
| Spoke hole|32H | ✔ |
|---|
| Spoke hole|36H | ✔ |
|---|
| 10 tooth cog compatible | ✔ |
|---|
| Axle fixing method | Quick release |
|---|
| Quick release skewer length (mm)|168 | ✔ |
|---|
| Quick release skewer length (mm)|173 | ✔ |
|---|
| Flange distance (mm) | 55.17 |
|---|
| Offset (mm) | 6.72 |
|---|
| P.C.D. left / right (mm) | 61/61 |
|---|
| Flange diameter Left/Right (mm) | 69.8/69.8 |
|---|
| MICRO SPLINE | ✔ |
|---|
| Engagement type | Pawl ratchet |
|---|
| Quick engagement | X (36 times/360 deg.) |
|---|
| Seal|Hub | Labyrinth & Contact |
|---|
| Seal|FREEHUB body | Contact |
|---|
