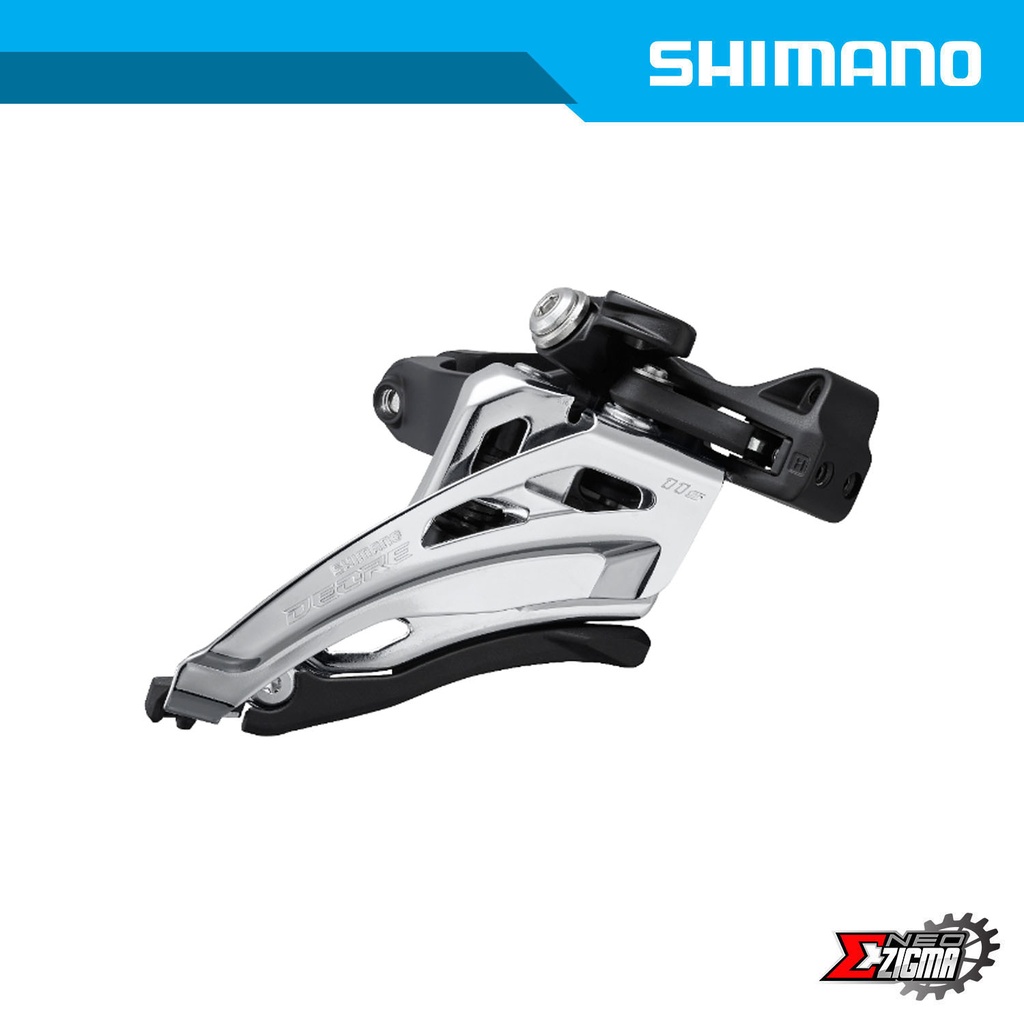

SHIMANO DEORE - Front Derailleur - SIDE SWING - Clamp Band Mount - 2x11-speed
Delivering quiet and smooth shifting, SHIMANO's FD-M5100 2x11 front derailleurs feature SHIMANO's new SIDE SWING technology. The new design offers enhanced cable routing, light action, and increases clearance for large wheels and short chain stays.
FEATURES
- Smooth and quiet front shifting on the trail
- More powerful outward shifting
- Wider traction range reduces chain rub for rear suspension bikes
- Extra wide range with front double 36-26T
- Wider tire clearance
- Compatible with 2.3-inch tire on wider rims
- One spec for 48.8 mm & 51.8 mm chainline
- Different options available
- Available in D, E, and M-type mounts
- *M type mount requires adapter (ø34.9 mm)
PRODUCT SPECIFICATIONS
| MODEL NO | FD-M5100-M |
|---|
| SERIES | DEORE M5100 Series |
|---|
| Color | Series color |
|---|
| Remarks | * S-size adapter is available in OTC package only. |
|---|
| Front speeds | 2 |
|---|
| Rear speeds | 11 |
|---|
| Compatible chain | LINKGLIDE, HG 11-speed |
|---|
| Action|SIDE SWING | ✔ |
|---|
| Mount|Clamp Band (mm)|28.6 | - * |
|---|
| Mount|Clamp Band (mm)|31.8 | X (w/ M size adapter) |
|---|
| Mount|Clamp Band (mm)|34.9 | ✔ |
|---|
| Cable route type|Front-Pull | ✔ |
|---|
| Chain line (mm) | 48.8/51.8 |
|---|
| Chain stay angle (deg.) | 66-69 |
|---|
| Top gear teeth | 36T |
|---|
| Total capacity | 10T |
|---|
| Angled stroke adjust screw | ✔ |
|---|
| Angled clamp band design | ✔ |
|---|
| Link bushings | 4 |
|---|
