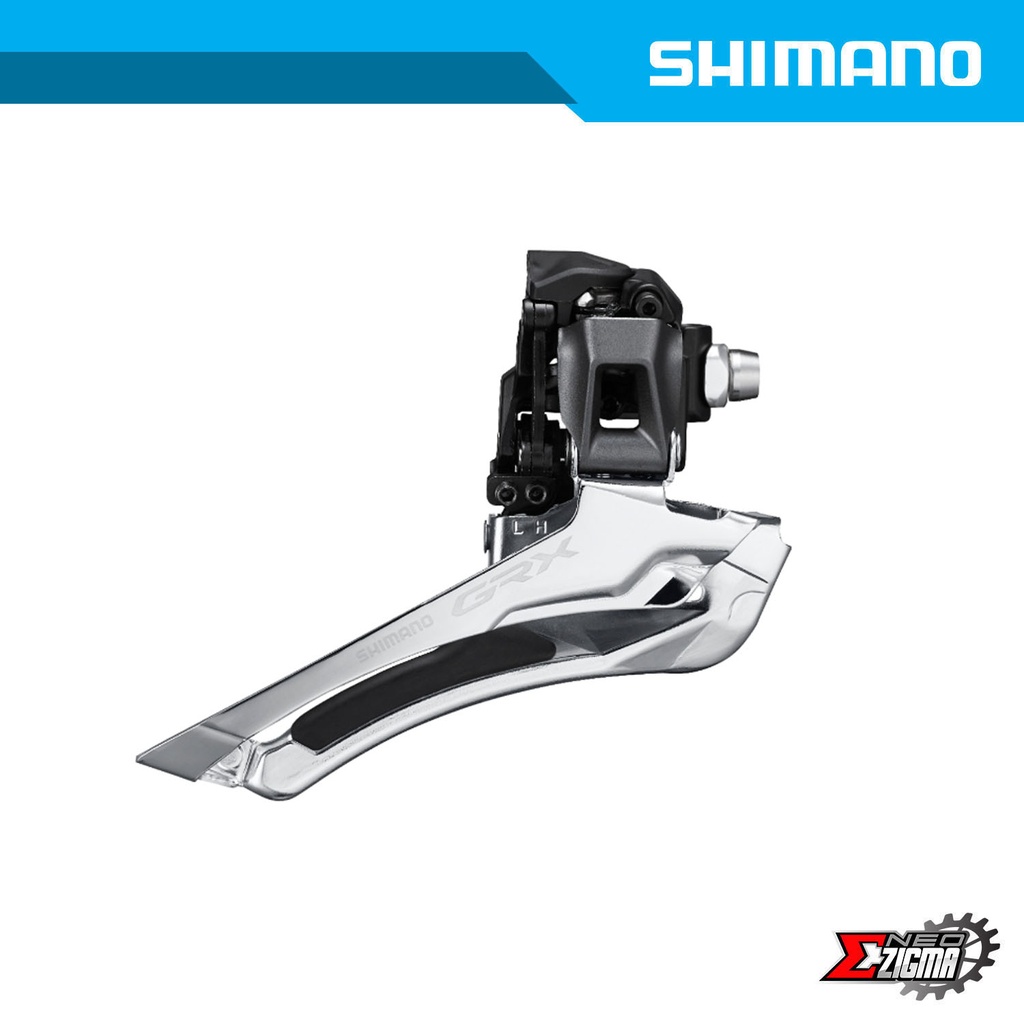

SHIMANO GRX - Front Derailleur - Gravel - 2x11-speed
The SHIMANO GRX RX-810-F front derailleur offer lighter front shifting operation and easier setup thanks to the new link construction and integrated cable tensioner. It features a 2.5mm outboard chain line design to allow wider tire clearance for mixed-terrain riding. The RX-810-F also accommodates a 17T front chainring range for wider gearing options.
FEATURES
- Lighter front shifting
- Ergonomic power curve
- New link (toggle) construction
- Natural stroke feeling
- Wider tire clearance
- Chainline +2.5 mm vs. conventional road FD
- Wider range front gearing
- 17T front range
- Precise and easy front derailleur adjustment
- More cable routing options
- New link (toggle) construction
- Integrated cable tension adjustment
PRODUCT SPECIFICATIONS
| MODEL NO | FD-RX810-F |
|---|
| SERIES | GRX 11-speed |
|---|
| Color | Series color |
|---|
| Average weight | 96 |
|---|
| Front speeds | 2 |
|---|
| Rear speeds | 11 |
|---|
| Compatible chain | LINKGLIDE, HG 11-speed |
|---|
| Action|Down Swing | ✔ |
|---|
| Mount|Brazed-On | ✔ |
|---|
| Cable adjust | ✔ |
|---|
| Chain line (mm) | 47 |
|---|
| Chain stay angle (deg.) | 61-66 |
|---|
| Top gear teeth | 46-48T |
|---|
| Total capacity | 17T |
|---|
| Link bushings | 7 |
|---|
