  2. Front Derailleur MTB SHIMANO XTR FD-M9000-L 3x11 31.8mm Low Clamp Side-Swing KFDM9000LM6

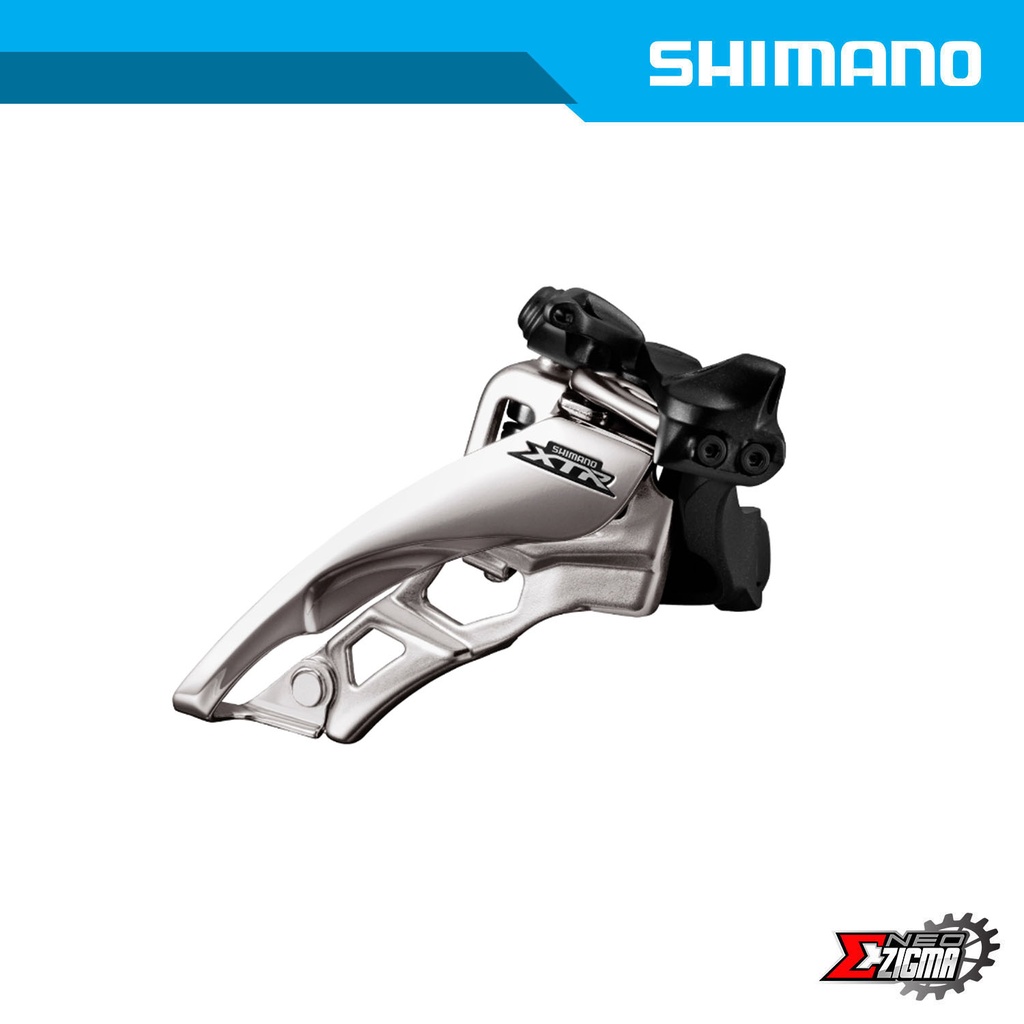

Front Derailleur MTB SHIMANO XTR FD-M9000-L 3x11 31.8mm Low Clamp Side-Swing KFDM9000LM6

https://www.neozigmaph.com/web/image/product.template/3882/image_1920?unique=14adf10

    This combination does not exist.

    SHIMANO
    MTB

    Shipping: 2-3 Business Days


    PRODUCT SPECIFICATIONS

    MODEL NOFD-M9000-L
    SERIESXTR M9000 Series
    ColorSeries color
    Average weight112.0 g
    Compatible chainHG-X11
    Action|SIDE SWING✔
    Mount|Clamp Band (mm)|28.6X (w/ S size adapter)
    Mount|Clamp Band (mm)|31.8X (w/ M size adapter)
    Mount|Clamp Band (mm)|34.9✔
    Cable route type|Front-Pull✔
    Chain line (mm)50
    Chain stay angle (deg.)66-69
    Top gear teeth40T
    Total capacity18T
    Applicable top-mid tooth difference10T
    Angled stroke adjust screw✔
    Angled clamp band design✔
    Link bushings6
