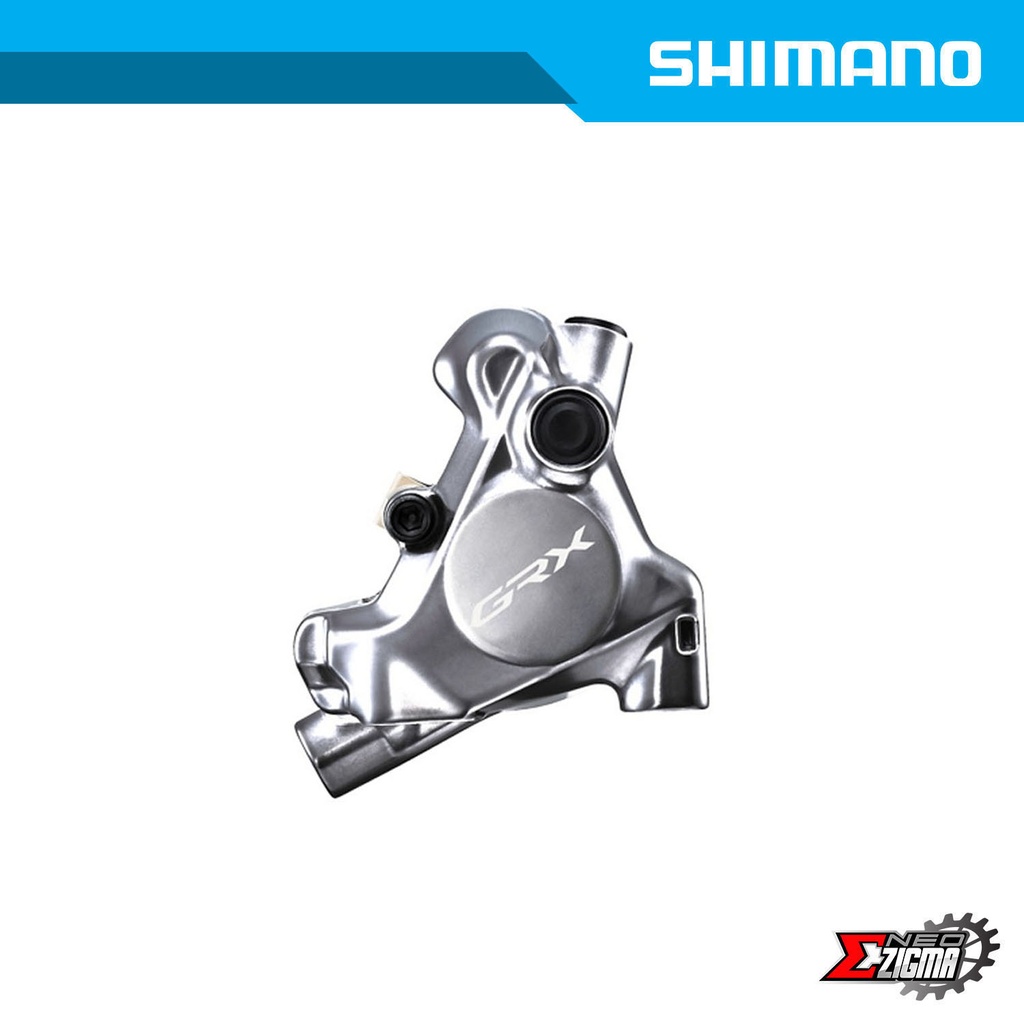

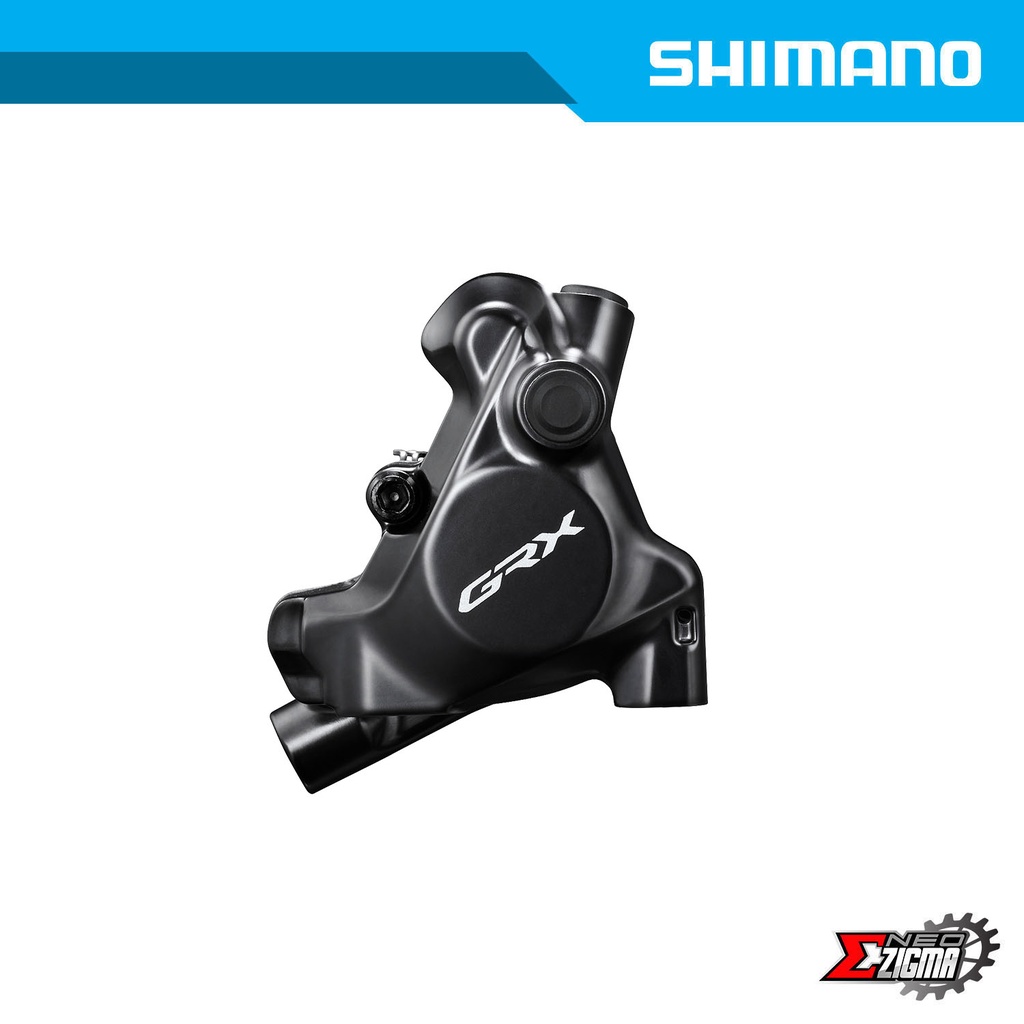

SHIMANO GRX Limited - Flat Mount - Hydraulic Disc Brake - Brake Caliper
With a low-profile flat mount design, the SHIMANO GRX-Limited BR-RX820-LE hydraulic disc brakes provide greater control for mixed-terrain riding.
FEATURES
- 10% wider pad clearance decreases brake noise
- Maintenance-friendly bleeding process
PRODUCT SPECIFICATIONS
| MODEL NO | BR-RX820-LE |
|---|
| SERIES | GRX Limited RX810 Series |
|---|
| Color | Series color |
|---|
| Remarks | Front spec with adaptor |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-JK-SSR |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | K05S-RX Resin (w/o fin) |
|---|
| Pad|Standard 2 | L05A-RF Resin (w/ fin) |
|---|
| Pad|Option 1 | L04C-MF Metal (w/ fin) |
|---|
| Fixing screw spec for rear mount|25 mm mount | ✔ |
|---|
| Recommended brake lever | ST-RX810-LE BL-RX810-L-LE BL-T8100-LE |
|---|
| Recommended disc brake rotor | SM-RT800 RT-MT800 |
|---|
| Oil | SHIMANO Mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Flat mount |
|---|
| Piston | 2 |
|---|
| Caliper fixing bolt|Tool size | 4 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Screw fixing pin, snap ring |
|---|
| Pad mount | Pad axle |
|---|
