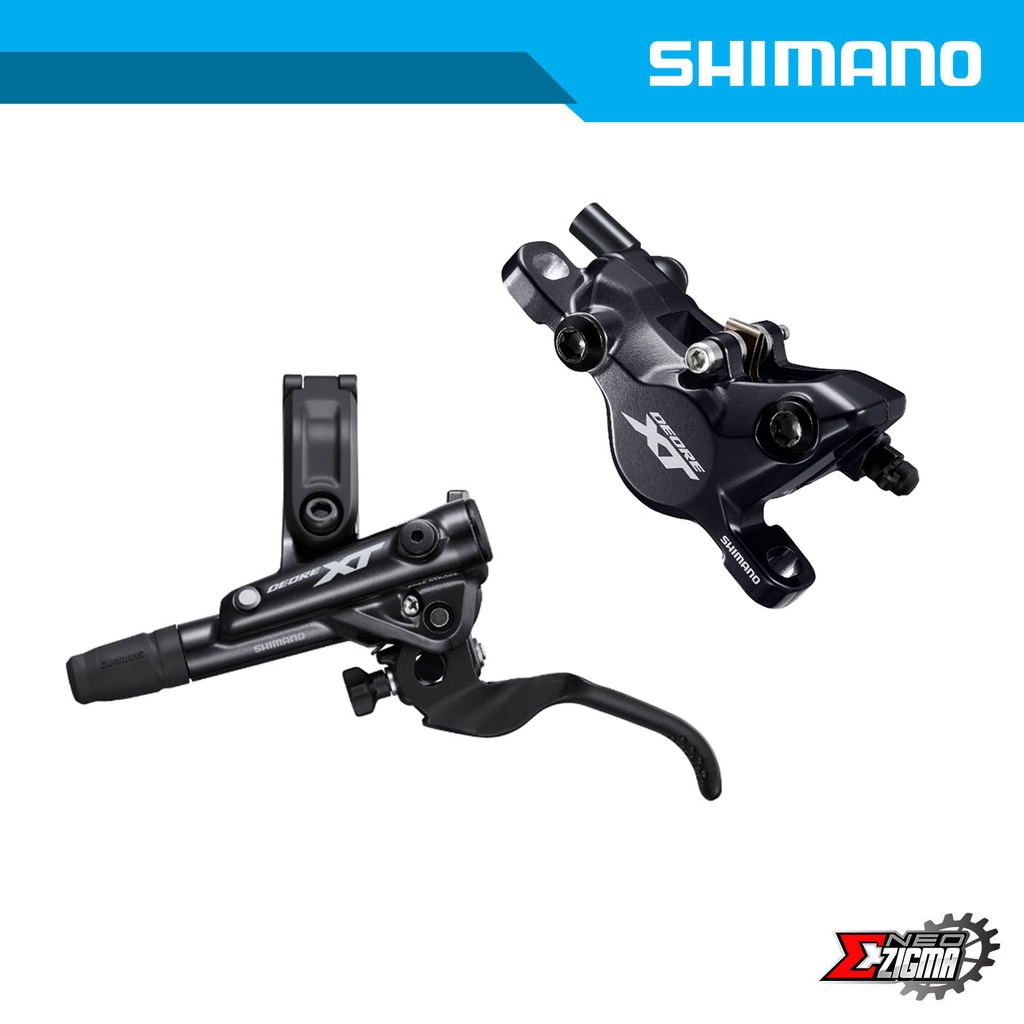

SHIMANO DEORE XT - Hydraulic Disc Brake Lever - I-SPEC EV Clamp Band
With a focus on reduced weight and cross-country tuned stopping power, the SHIMANO DEORE XT BL-M8100 lever provides intuitive modulation so that you can explore your limits with confidence.
FEATURES
- Intuitive and versatile braking keeps your focus on the trail
- Optimized lever axle position with additional contact point and refined ergonomics
- Greater flexibility and action-optimized cockpit layout
- I-SPEC EV
- High rigidity
- 10% stiffer than M8000 even under high temp conditions
- Quicker brake engagement with shorter free stroke
- Rider tuned adjustment
- Toolless reach adjust
- Free stroke adjust
PRODUCT SPECIFICATIONS
| MODEL NO | BL-M8100 |
|---|
| SERIES | DEORE XT M8100 Series |
|---|
| Color | Series color |
|---|
| Average weight | 105 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Lever size (finger) | 2 |
|---|
| Brake hose (Kit) | SM-BH90-SBM |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| SERVO WAVE | ✔ |
|---|
| Reach adjust|Toolless | ✔ |
|---|
| Free stroke adjust | ✔ |
|---|
| Compatible shift lever mount|Clamp band | ✔ |
|---|
| Compatible shift lever mount|I-SPEC EV | ✔ |
|---|
| Clamp band|Open clamp | ✔ |
|---|
| Shift lever rotation angle adjust range (I-SPEC EV ; deg.) | 20 |
|---|
| Recommended brake caliper | BR-M8100, BR-M8110-R, BR-M8120 |
|---|
| Oil | SHIMANO Mineral |
|---|
| Funnel bleeding | ✔ |
|---|
SHIMANO DEORE XT - 2-Piston - ICE TECHNOLOGIES - Hydraulic Disc Brake Caliper
The SHIMANO DEORE XT M8100 caliper features lightweight braking performance and reliable stopping power in all conditions
FEATURES
- Superior modulation gives you greater control
- Quicker Piston retraction
- Lightweight
- Two piston
- Quick and easy assembly
- Banjo type connection and inside hose routing
PRODUCT SPECIFICATIONS
| MODEL NO | BR-M8100 |
|---|
| SERIES | DEORE XT M8100 Series |
|---|
| Color | Series color |
|---|
| Average weight | 269 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-SBM |
|---|
| Hose joint | Banjo |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | G05A-RX Resin (w/o fin) |
|---|
| Pad|Standard 2 | G04S-MX Metal (w/o fin) |
|---|
| Pad|Option 1 | J05A-RF Resin (w/ fin) |
|---|
| Pad|Option 2 | J04C-MF Metal (w/ fin) |
|---|
| Recommended brake lever | BL-M8100 BL-T8100 |
|---|
| Recommended disc brake rotor | RT-MT800 |
|---|
| Compatible Brake Rotor Size|140 mm (SS) | ✔ |
|---|
| Compatible Brake Rotor Size|160 mm (S) | ✔ |
|---|
| Compatible Brake Rotor Size|180 mm (M) | ✔ |
|---|
| Compatible Brake Rotor Size|203 mm (L) | ✔ |
|---|
| Oil | SHIMANO Mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Post-type |
|---|
| Piston | 2 |
|---|
| Caliper fixing bolt|Tool size | 5 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Snap ring |
|---|
| Pad mount | Pad axle |
|---|
