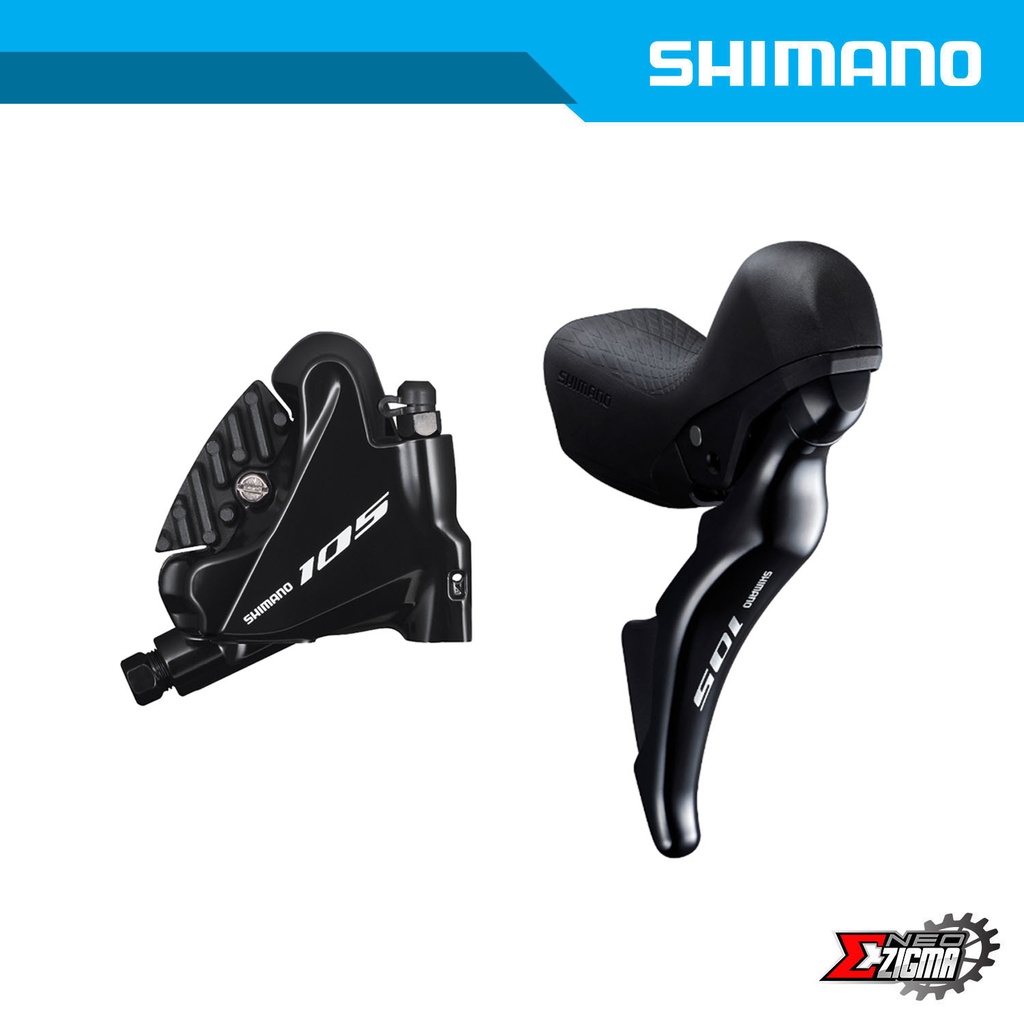

SHIMANO 105 - Flat Mount - Hydraulic Disc Brake - Rear Caliper
The all-new SHIMANO 105 R7000 series hydraulic disc brakes offer greater rider control in all conditions. With convenient ONE WAY BLEEDING and easy hose joint system, installation and adjustment are kept simple. The R7070 caliper is offered in both silver and black.
FEATURES
- Greater rider control in all conditions
- Excellent heat dissipation
- ICE TECHNOLOGIES
- Simple set up and maintenance
- Convenient tool access
- Easy hose joint system (J-kit)
- Simple wheel replacement
- Easy and clean bleeding system
- ONE WAY BLEEDING
PRODUCT SPECIFICATIONS
| MODEL NO | BR-R7070-R |
|---|
| SERIES | SHIMANO 105 R7000 Series |
|---|
| Color | Silky black | Spark silver |
|---|
| Average weight | 124 |
|---|
| Brake type | Hydraulic disc brake |
|---|
| Brake hose (Kit) | SM-BH90-JK-SSR SM-BH90-J-SSR |
|---|
| Hose joint | Straight |
|---|
| Brake hose color (kit)|1 | Black |
|---|
| J-Kit spec (for OEM) | ✔ |
|---|
| ICE TECHNOLOGIES pad compatible caliper | ✔ |
|---|
| Pad|Standard 1 | K05S-RX Resin (w/o fin) |
|---|
| Pad|Standard 2 | L05A-RF Resin (w/ fin) |
|---|
| Pad|Option 1 | K04S-MX Metal (w/o fin) |
|---|
| Pad|Option 2 | L04C-MF Metal (w/ fin) |
|---|
| Fixing screw spec for rear mount|10 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|15 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|20 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|25 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|30 mm mount | ✔ |
|---|
| Fixing screw spec for rear mount|35 mm mount | ✔ |
|---|
| Recommended brake lever | ST-R7020 ST-R7025 |
|---|
| Recommended disc brake rotor | SM-RT70 |
|---|
| Oil | SHIMANO Mineral |
|---|
| ONE WAY BLEEDING | ✔ |
|---|
| Mount type | Flat mount |
|---|
| Piston | 2 |
|---|
| Caliper fixing bolt|Tool size | 4 mm |
|---|
| Caliper fixing bolt|Anti loosen method | Screw fixing pin |
|---|
| Pad mount | Pad axle |
|---|
SHIMANO 105 - Hydraulic Disc Brake - DUAL CONTROL LEVER - 11-speed - For Small Hands
The SHIMANO 105 R7020 DUAL CONTROL LEVERS bring the all condition confidence of hydraulic disc brakes and refined ergonomics to the quick and intuitive shifting cyclists expect from SHIMANO 105.
FEATURES
- Greater control in all conditions for riders with smaller hands
- Smaller lever size and new positioning improves ergonomics
- Dedicated lever control for riders with smaller hands
- Quick and intuitive rear shifting operation
- Redesigned internal shifting unit
- Same light shifting operation as ULTEGRA R8000
