With a low-profile flat mount design, the SHIMANO GRX-Limited BR-RX820-LE hydraulic disc brakes provide greater control for mixed-terrain riding.
FEATURES
10% wider pad clearance decreases brake noise
Maintenance-friendly bleeding process
PRODUCT SPECIFICATIONS
MODEL NO
BR-RX820-LE
SERIES
GRX Limited RX810 Series
Color
Series color
Remarks
Front spec with adaptor
Brake type
Hydraulic disc brake
Brake hose (Kit)
SM-BH90-JK-SSR
Hose joint
Straight
Brake hose color (kit)|1
Black
ICE TECHNOLOGIES pad compatible caliper
✔
Pad|Standard 1
K05S-RX Resin (w/o fin)
Pad|Standard 2
L05A-RF Resin (w/ fin)
Pad|Option 1
L04C-MF Metal (w/ fin)
Fixing screw spec for rear mount|25 mm mount
✔
Recommended brake lever
ST-RX810-LE BL-RX810-L-LE BL-T8100-LE
Recommended disc brake rotor
SM-RT800 RT-MT800
Oil
SHIMANO Mineral
ONE WAY BLEEDING
✔
Mount type
Flat mount
Piston
2
Caliper fixing bolt|Tool size
4 mm
Caliper fixing bolt|Anti loosen method
Screw fixing pin, snap ring
Pad mount
Pad axle
SHIMANO GRX Limited - Hydraulic Disc Brake - DUAL CONTROL LEVER - SERVO WAVE ACTION - 1x11-speed
The SHIMANO GRX-Limited BL-RX810-L-LE shifter brings greater rider control for mixed-terrain riding thanks to SHIMANO's category-leading hydraulic disc brakes.
PRODUCT SPECIFICATIONS
MODEL NO
BL-RX810-L-LE
SERIES
GRX Limited RX810 Series
Color
Series color
Brake type
Hydraulic disc brake
Bracket cover color|1
Standard
Brake hose (Kit)
SM-BH90-JK-SSR
Hose joint
Straight
Brake hose color (kit)|1
Black
SERVO WAVE
✔
Reach adjust|Tool
✔
Free stroke adjust
✔
Clamp band|Diameter (mm)
23.8-24.2
Recommended brake caliper
BR-RX820-LE
Oil
SHIMANO Mineral
Funnel bleeding
✔

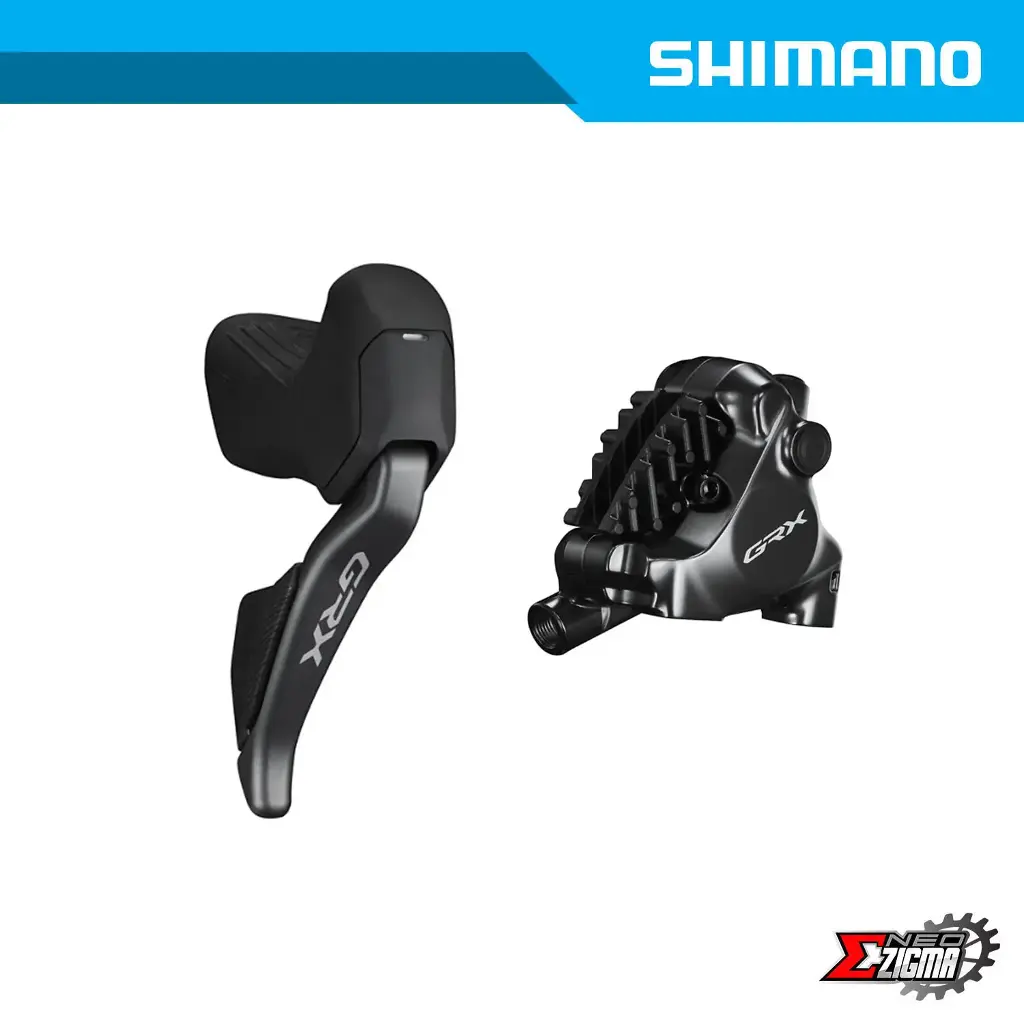

Disc Brake Assembly Gravel SHIMANO GRX Di2 BR-RX820/ST-RX825 12-Spd For 140mm Rotor J-kit w/ Fin Rear Ind. Pack IRX8251DRRDSC170B
