Stiff and efficient pedaling for trekking and urban exploration

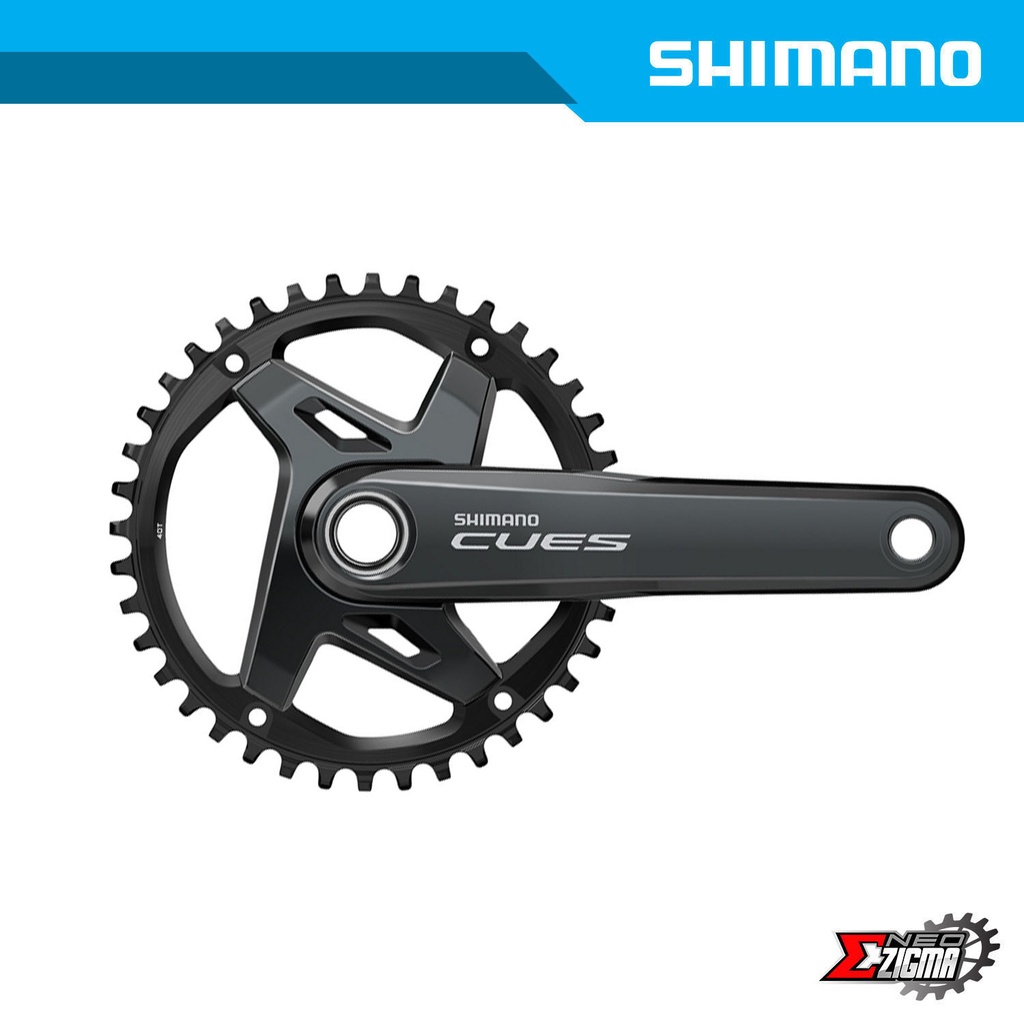

This HOLLOWTECH II crankset's superior chain retention and stiff yet lightweight design boost confidence on long trekking trips.
FEATURES
- Special gear tip shape improves chain engagement and retention for smooth riding over rough terrain
- DYNAMIC CHAIN ENGAGEMENT+
- Hollow-forged crank maximizes power transfer while limiting weight
- HOLLOWTECH II
PRODUCT SPECIFICATIONS
| MODEL NO | FC-U8000-1 |
|---|
| SERIES | CUES U8000 Series |
|---|
| Color | Series color |
|---|
| Rear speeds | 11/10/9 |
|---|
| Compatible chain | LINKGLIDE, HG 11-speed |
|---|
| Chain line (mm) | 50 |
|---|
| O.L.D.|Thru (mm) | 142 |
|---|
| O.L.D.|QR/Nut (mm) | 135 |
|---|
| P.C.D. (mm) | 110 |
|---|
| Spider/Gear arms | 4 |
|---|
| Chainring combination | 40T, 42T |
|---|
| Q-factor (mm) | 180 |
|---|
| Crank arm length (mm)|170 | ✔ |
|---|
| Crank arm length (mm)|175 | ✔ |
|---|
| Optional chain guard|With chain guard | ✔ |
|---|
| Optional chain guard|Without chain/bash guard | ✔ |
|---|
| HOLLOWTECH II | ✔ |
|---|
| Compatible bottom bracket type|Outboard | ✔ |
|---|
| Recommended bottom bracket|Threaded (normal) | BB-MT801 |
|---|
| Recommended bottom bracket|Press-fit | BB-MT800-PA |
|---|
| Threaded bottom bracket shell width (mm)|68 | ✔ |
|---|
| Threaded bottom bracket shell width (mm)|73 | ✔ |
|---|
| Chain case compatible | ✔ |
|---|
| Stainless chain guard fixing screw | ✔ |
|---|
| Crank fixing screw included | ✔ |
|---|
