Reliable performance and smooth all-terrain pedaling
Spend more time enjoying the freedom of trekking with this crankset's seamless and efficient pedaling. It is available in three wide-range options: 46-30T, 40-26T, or 36-22T.
FEATURES
2-PIECE CRANKSET increases rigidity of crankset with less weight and transmits pedaling force efficiently
Chain case only compatible with 46-30T
PRODUCT SPECIFICATIONS
MODEL NO
FC-U4010-2
SERIES
CUES U4000 Series
Color
Series color
Rear speeds
11/10/9 (36-22T, 40-26T), 10/9 (46-30T)
Compatible chain
LINKGLIDE, HG 11-speed
Chain line (mm)
48.8
O.L.D.|Thru (mm)
142
O.L.D.|QR/Nut (mm)
135
P.C.D. (mm)
Riveted
Spider/gear arms
4
Chainring combination
36-22T, 40-26T, 46-30T
Q-factor (mm)
180
Crank arm length (mm)|170
✔
Crank arm length (mm)|175
✔
Optional chain guard|With chain guard
X (40-26T, 46-30T)
Optional chain guard|Without chain/bash guard
✔
2-PIECE CRANKSET
✔
Compatible bottom bracket type|Outboard
✔
Recommended bottom bracket|Threaded (normal)
BB-MT501
Recommended bottom bracket|Threaded (chain case)
BB-MT501
Recommended bottom bracket|Press-Fit
BB-MT500-PA
Threaded bottom bracket shell width (mm)|68
✔
Threaded bottom bracket shell width (mm)|73
✔
Chain case compatible
X (46-30T)
Crank fixing screw included
✔
Specifications
Size
36x22x170mm 9/10-11Spd or
40x26x170mm 9/10-11Spd or
46x30x170mm 9/10-Spd

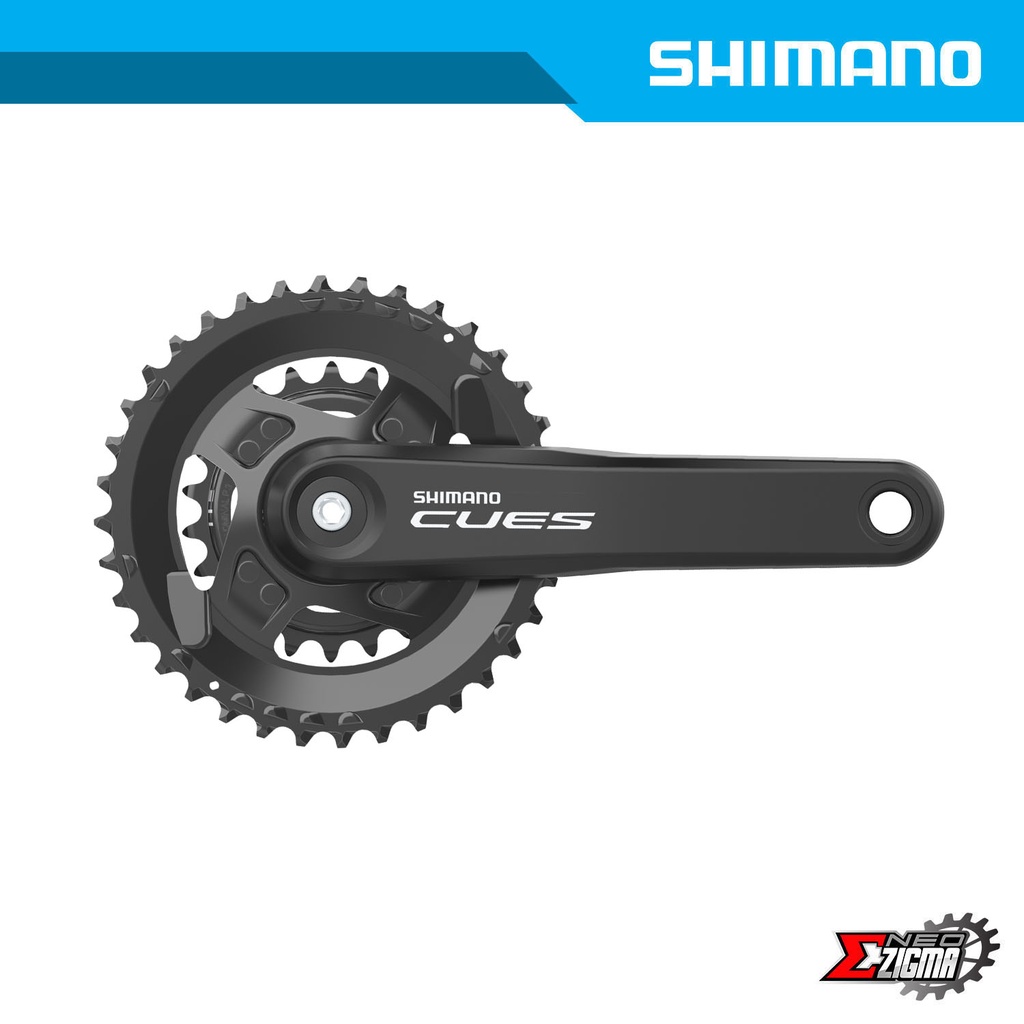

Chainwheel MTB SHIMANO CUES FC-U4010-2 w/o BB Parts Ind. Pack
