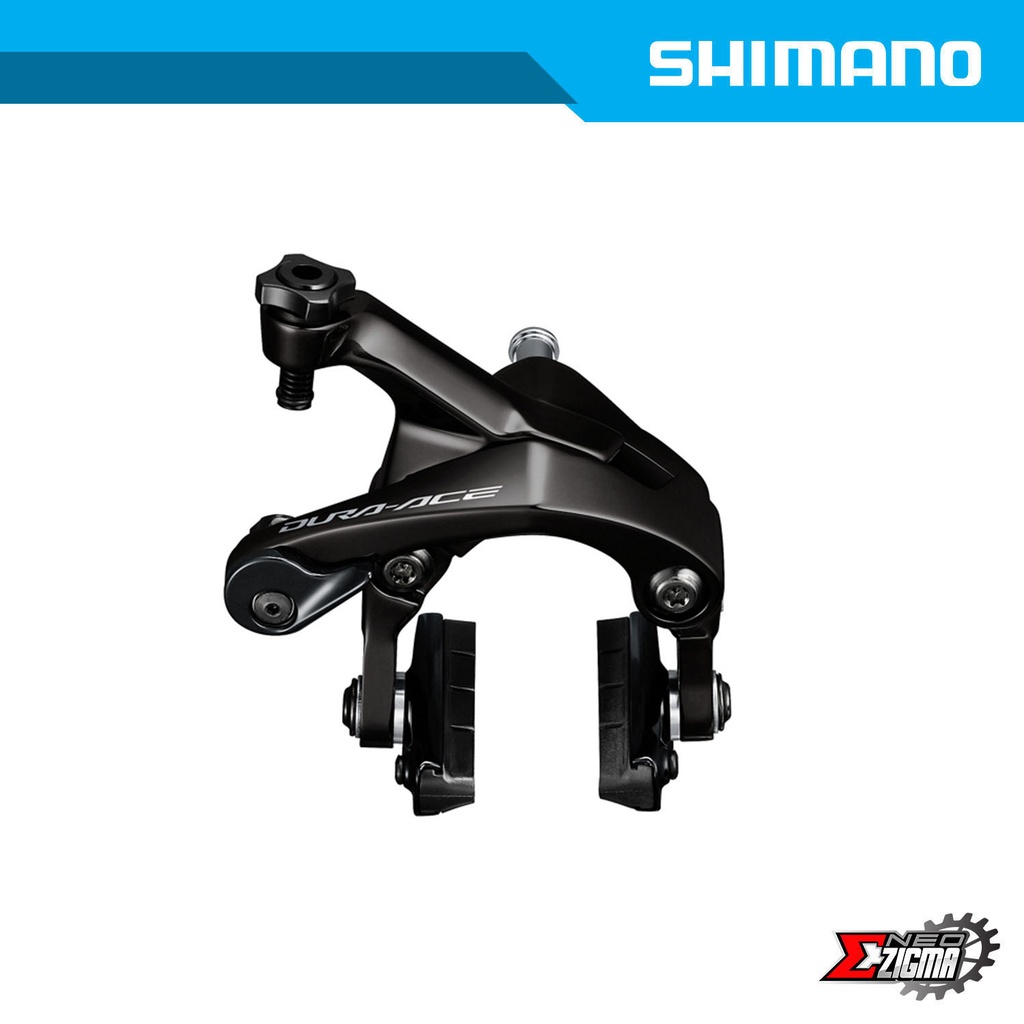

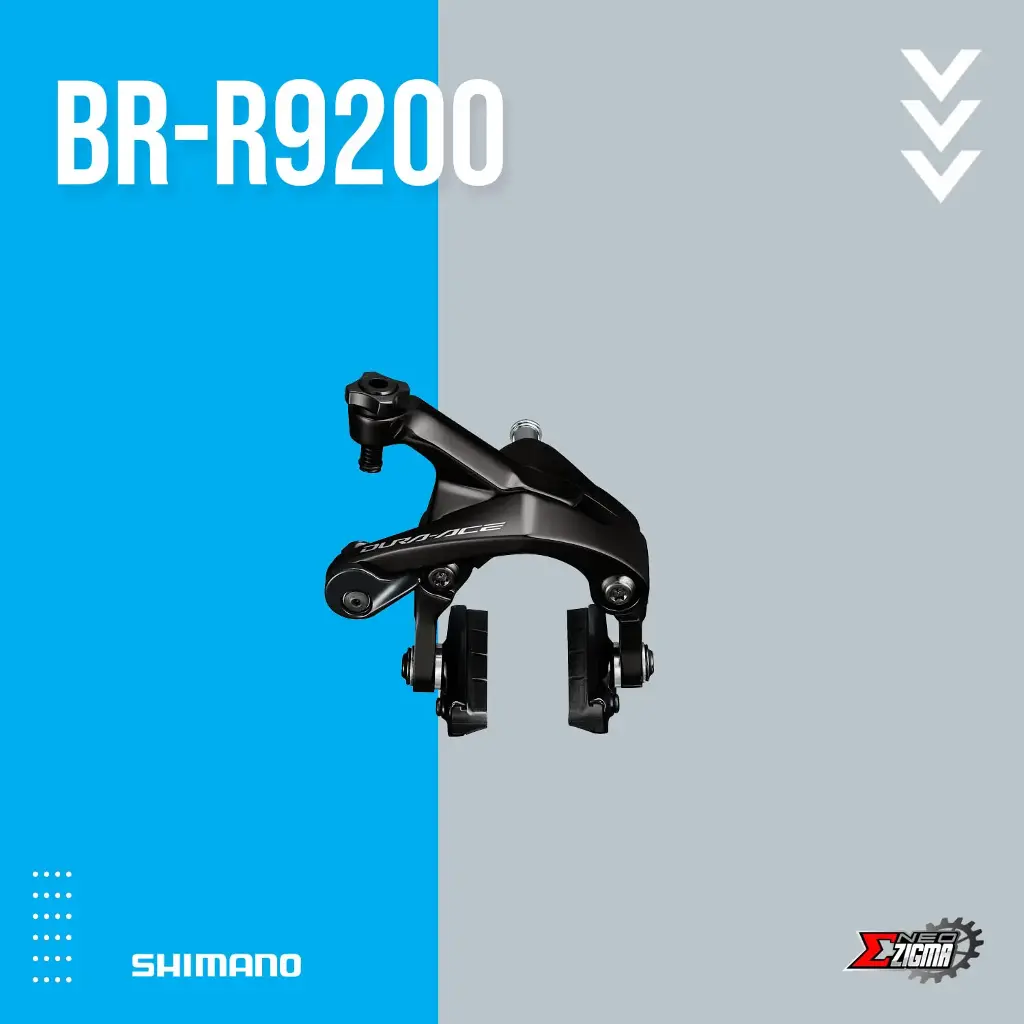

Caliper Brake Road SHIMANO Dura-Ace BR-R9200 Rear Ind. Pack IBRR9200AR82A
DURA-ACE - Dual-Pivot - Brake Caliper - SLR-EV - Rim Brake
With SHIMANO's SLR-EV dual symmetric pivot design, the short-arm DURA-ACE R9200 series caliper brakes employ twin bearings and a roller to realize greater efficiency and deliver superior modulation and stopping power. They are offered in traditional and direct mount options.
FEATURES
- Exceptional balance of rigidity, weight and stopping power
- Maximum tire size: 28C
- Lightweight magnesium brake shoe holder
PRODUCT SPECIFICATIONS
| MODEL NO | BR-R9200 |
|---|---|
| SERIES | DURA-ACE R9200 Series |
| Color | Series color |
| Average weight | 327 ( /pair) |
| Brake type | SLR-EV Dual Pivot |
|---|---|
| Reach (mm) | 51 |
| Brake shoe|Standard | R55C4 |
| Brake shoe|Optional choice | R55C4 Carbon R55C4-A Carbon R55CT4 |
| Compatibility | SLR-EV |
| Assembly pivot nut (mm)|Front (mm)|10.5 | ✔ |
| Assembly pivot nut (mm)|Front (mm)|12.5 | ✔ |
| Assembly pivot nut (mm)|Front (mm)|18.0 | ✔ |
| Assembly pivot nut (mm)|Front (mm)|27.0 | ✔ |
| Assembly pivot nut (mm)|Front (mm)|32.0 | ✔ |
| Assembly pivot nut (mm)|Rear (mm)|10.5 | ✔ |
| Cartridge shoe holder | ✔ |
| Tire guide bumpers | ✔ |
| Quick release lever | ✔ |
| Shoe angle adjusting | ✔ |
| Maximum tire size | 28C |
| Rim width (mm) | 20.8 - 28 mm |
| Titanium cable fixing bolt | ✔ |
| Titanium pivot bolt | ✔ |
