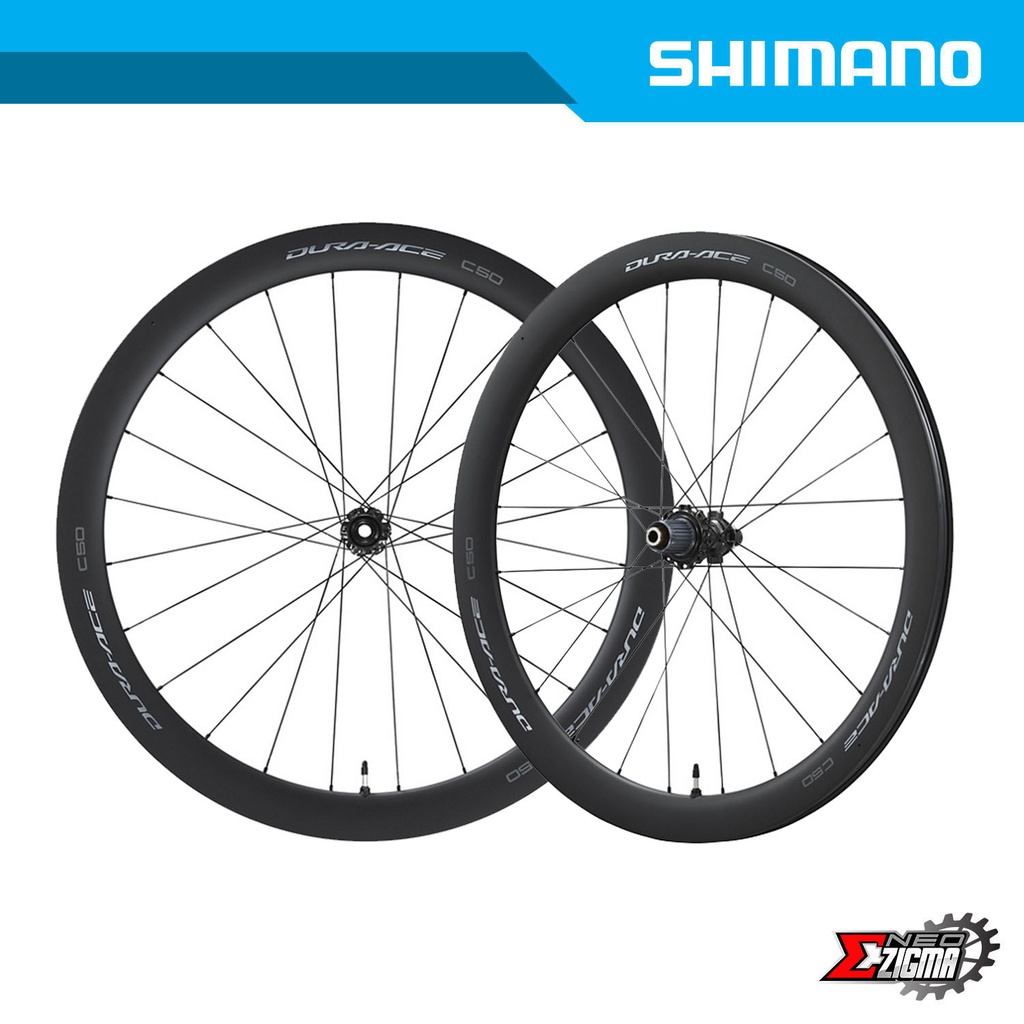

The all-rounder of the new DURA-ACE wheel lineup, the C50 is both lighter than the previous C40 model and nearly as aerodynamic as the previous C60. It's a wheelset at home in a wide range of conditions. From time trials to criteriums, on rolling terrain or attempting a personal best, the new C50 is the ideal wheel for spirited road riding.
The perfect blend of low weight and aerodynamic performance, the all-new DURA-ACE C50 features an updated all-carbon tubeless rim and new hub design that drops weight while enhancing rigidity.
FEATURES
All-round tubeless wheels with balanced aerodynamics and lightweight materials

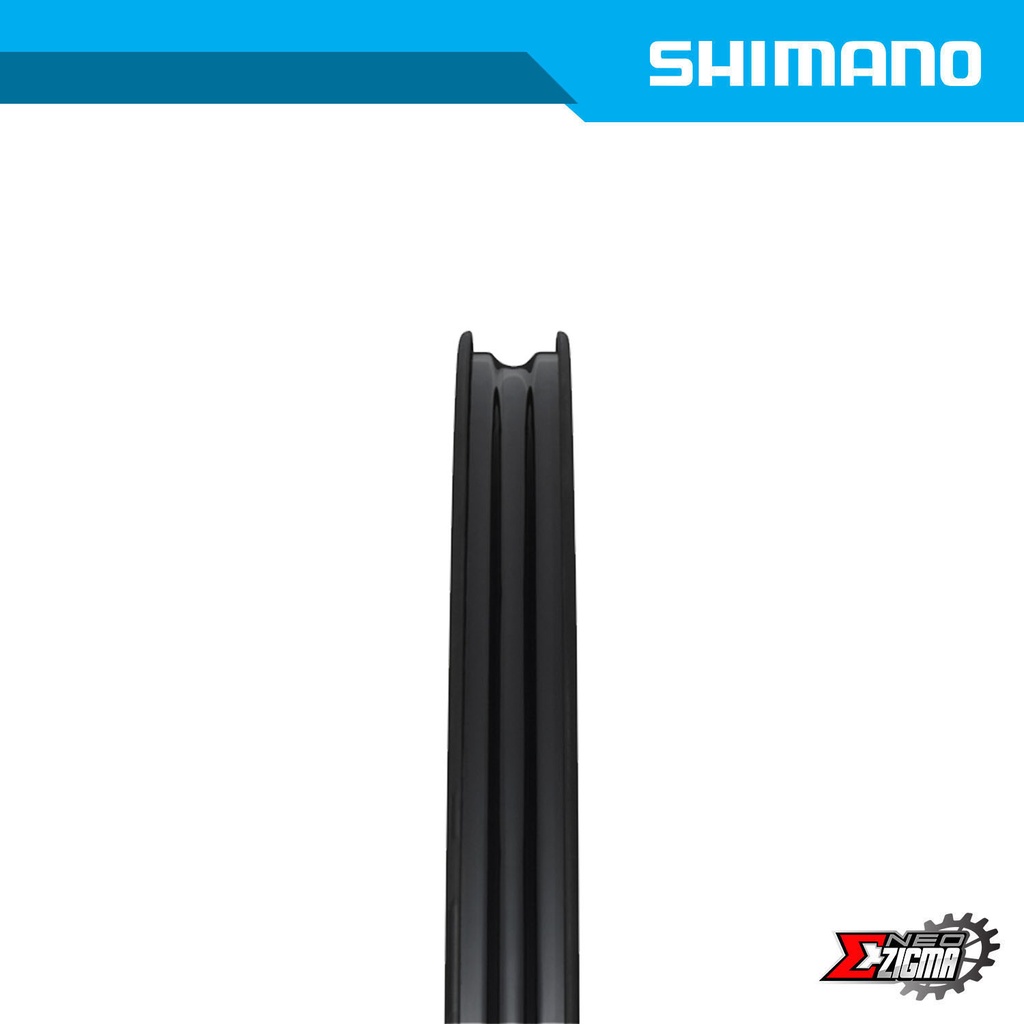

50 mm height full carbon rim
Internal rim width: 21 mm
PRODUCT SPECIFICATIONS
MODEL NO
WH-R9270-C50-TL-F
SERIES
DURA-ACE R9200 Series
Average weight
674
Model name
WH-R9270-C50-TL
Specification
F
Color|1 Hub shell
Series Color
Front/Rear
Front
Brake type
CENTER LOCK disc brake
O.L.D. (mm)
100
Wheel Size
622 x 21C
Tire|Type
Tubeless
Tire|Recommended size
25-622 - 32-622
Rim|Height (mm)
50
Rim|Internal width (mm)
21
Rim|External width (mm)
28
Rim|Requires rim tape
✔
Spokes|Number
24
Spokes|Straight pull
✔
Spokes|Bladed
✔
Spokes|Butted
✔
Spokes|Diameter (mm)
2.0-1.5-2.0
Axle fixing method
12 mm E-THRU
Thru axle (length x inner diameter ; mm)|100 x 12
✔
Disc mount|CENTER LOCK
✔
Disc mount|140 mm Disc brake rotor compatible
✔
D2 rim
✔
Seal|Hub
Contact
Reflector|JIS/CPSC
CATEYE RR-550-WUW SW
Reflector|AS
CATEYE RR-550-WUA SW
Reflector|DIN
CATEYE RR-317-WUA SW
FEATURES

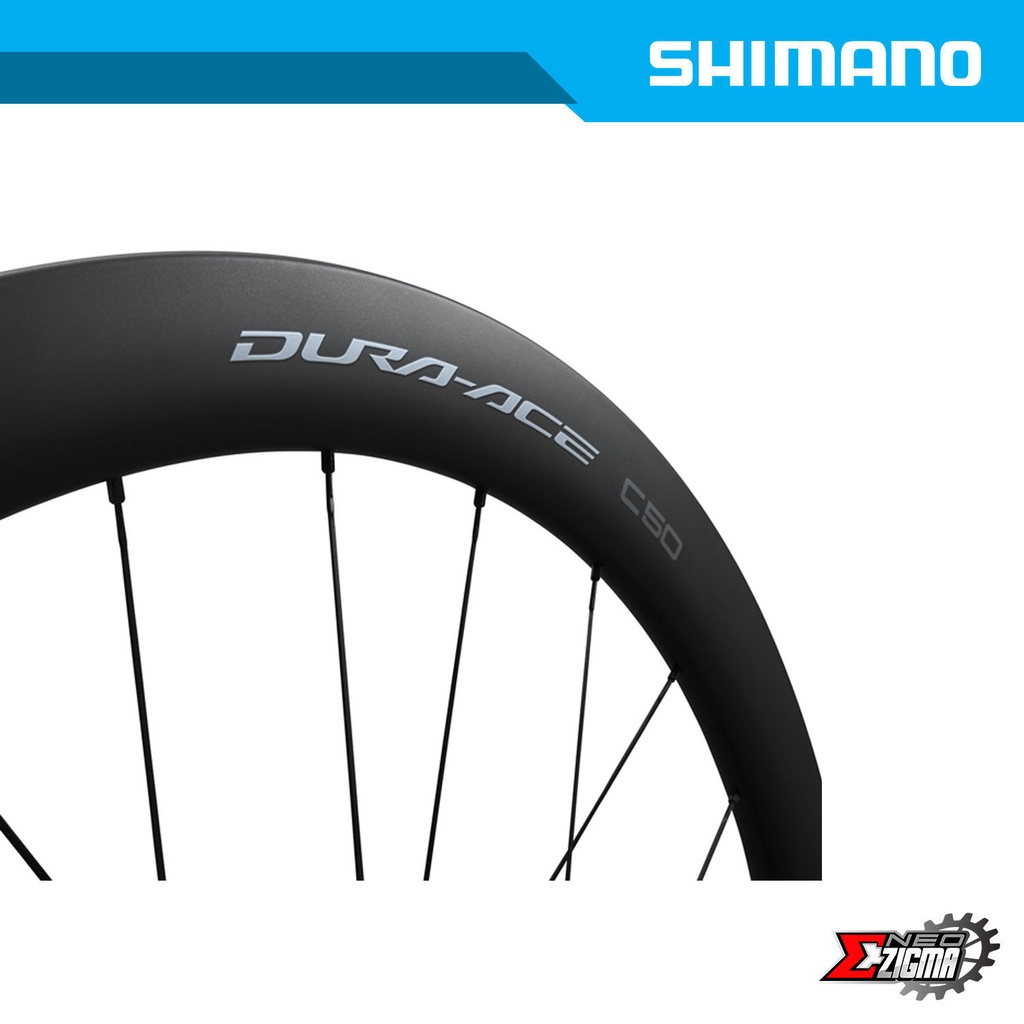

50 mm height full carbon rim
Internal rim width: 21 mm
DIRECT ENGAGEMENT
Compatible only with Shimano road 12-speed cassette sprockets
