Despite its smaller, lighter design, the DURA-ACE FD-R9250 brings our fastest front shifting.
Our fastest just got faster thanks to the DURA-ACE FD-R9250. Tipping the scales under 100 grams, the new design shifts 45% quicker than Shimano's FD-R9150, already our fastest. The frontal area of the FD-R9250 is also reduced decreasing aerodynamic drag.
FEATURES
Our fastest ever front shifting, 45% faster than FD-R9150
Smaller, sleeker, lighter
Frontal area reduced by 33%
Weight cut to 96 g
Top gear teeth capacity: 50-55T
PRODUCT SPECIFICATIONS
MODEL NO
FD-R9250
SERIES
DURA-ACE R9200 Series
Color
Series color
Average weight
96
Front speeds
2
Rear speeds
12
Compatible chain
HG 12-speed
Action|Down Swing
✔
Mount|Brazed-On
✔
Chain line (mm)
44.5
Chain stay angle (deg.)
61 - 66
Top gear teeth
50-54T
Total capacity
16T
Link bushings
4
Firmware update by E-TUBE PROJECT
✔
SD50 port (pcs)
0
SD300 port (pcs)
1
SD50 connector (pcs)
0
SD300 connector (pcs)
0

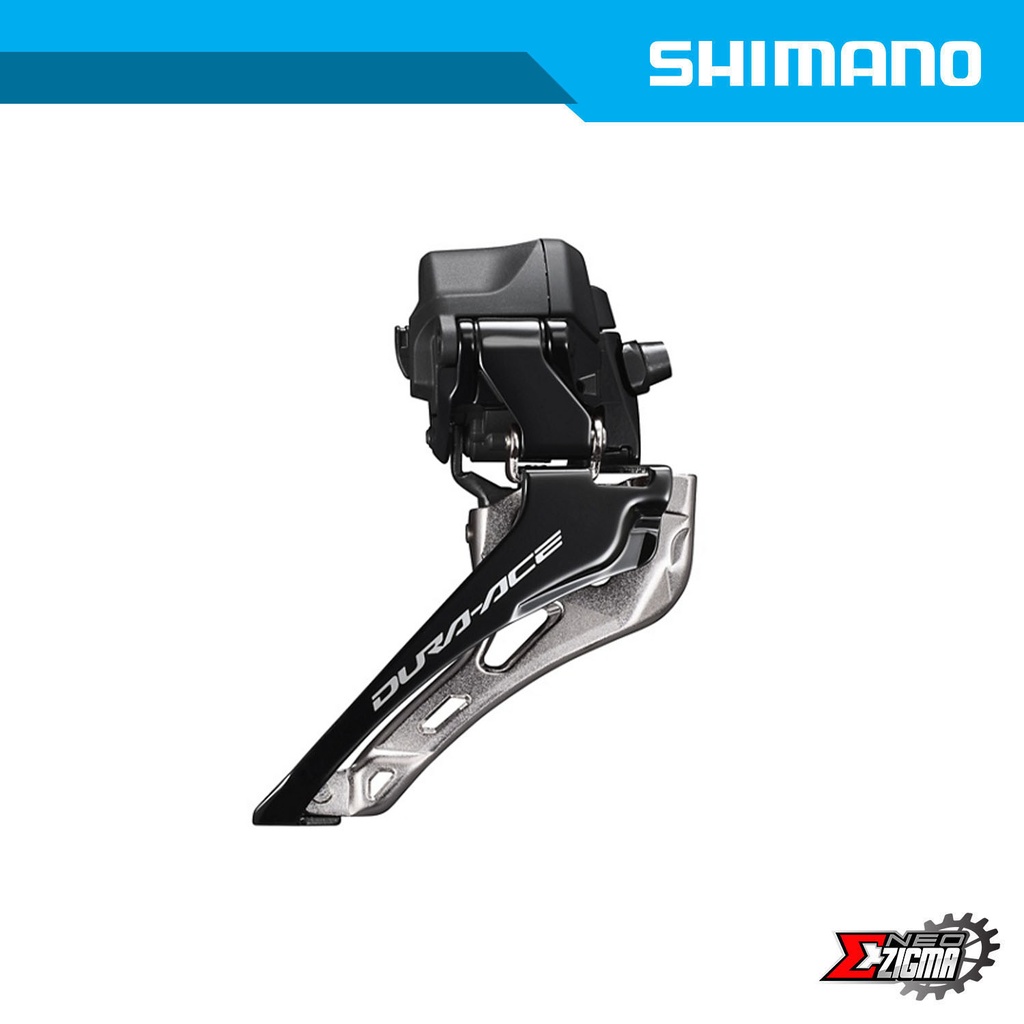

Front Derailleur Road SHIMANO Dura-Ace Di2 FD-R9250 12-Spd Down Swing Brazed-On Ind. Pack IFDR9250F
