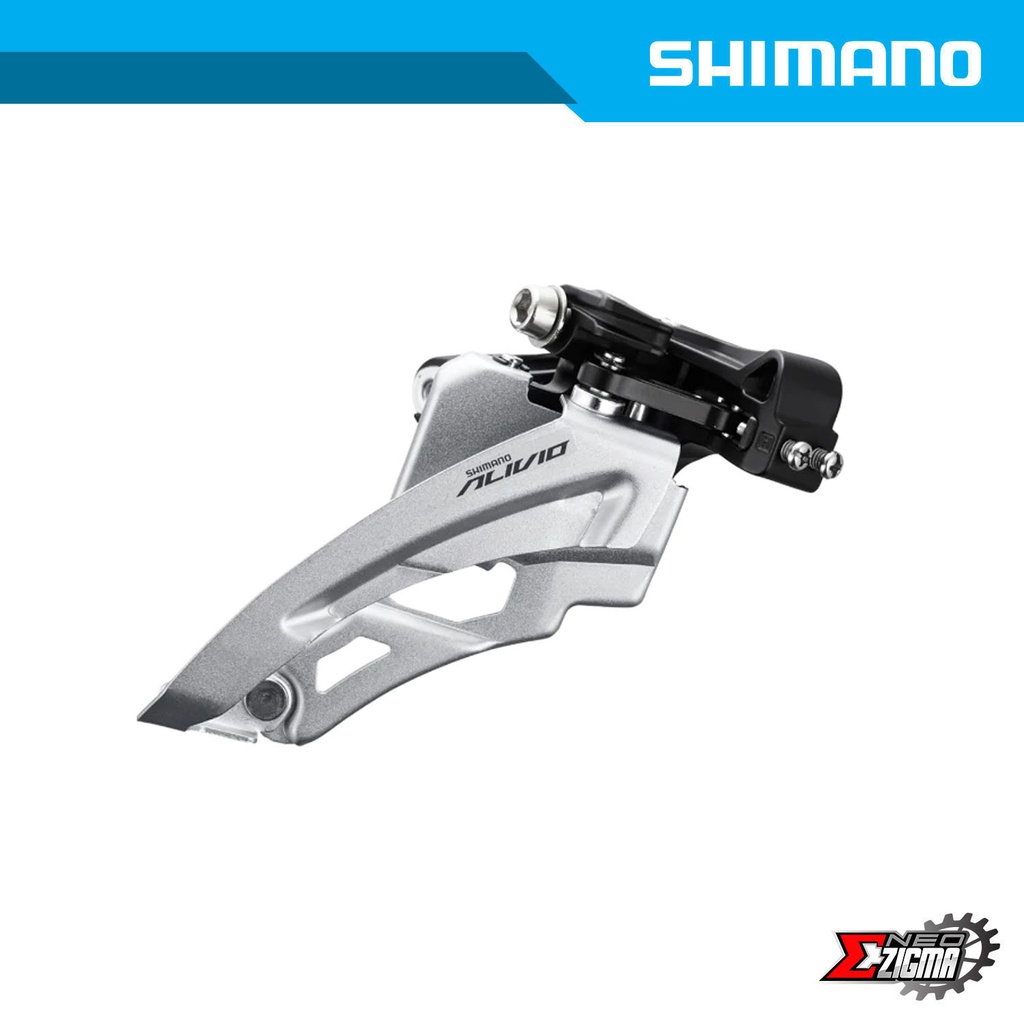

SHIMANO ALIVIO - Front Derailleur - SIDE SWING - Clamp Band Mount - 3x9-speed
The SHIMANO ALIVIO FD-M3100 3x9-speed front derailleur uses SHIMANO's new SIDE SWING for enhanced cable routing, light action, and smooth operation. The new design provides extra wide range for triple front chainring cranksets and increases clearance for large wheels and short chain stays.
FEATURES
For front triple chainring
Smooth and quiet front shifting on the trail
More powerful outward shifting
Wider traction range reduces chain rub for rear suspension bikes
Extra wide range with front triple 40-30-22T
Compatible with 2.3-inch tire on wider rims
Chainline: 50 mm
PRODUCT SPECIFICATIONS
MODEL NO
FD-M3100-M
SERIES
SHIMANO ALIVIO M3100 Series
Color
Series color
Front speeds
3
Rear speeds
9
Compatible chain
HG 9-speed
Action|SIDE SWING
✔
Mount|Clamp Band (mm)|28.6
X (w/ S size adapter)
Mount|Clamp Band (mm)|31.8
X (w/ M size adapter)
Mount|Clamp Band (mm)|34.9
✔
Cable route type|Front-Pull
✔
Chain line (mm)
50
Chain stay angle (deg.)
66-69
Top gear teeth
40T
Total capacity
18T
Applicable top-mid tooth difference
10T
Angled stroke adjust screw
✔
Angled clamp band design
✔
Link bushings
4
Front Derailleur MTB SHIMANO Alivio FD-M3100-M 3x9 Mid Clamp Side Swing 34.9mm Ind. Pack EFDM3100MX6
