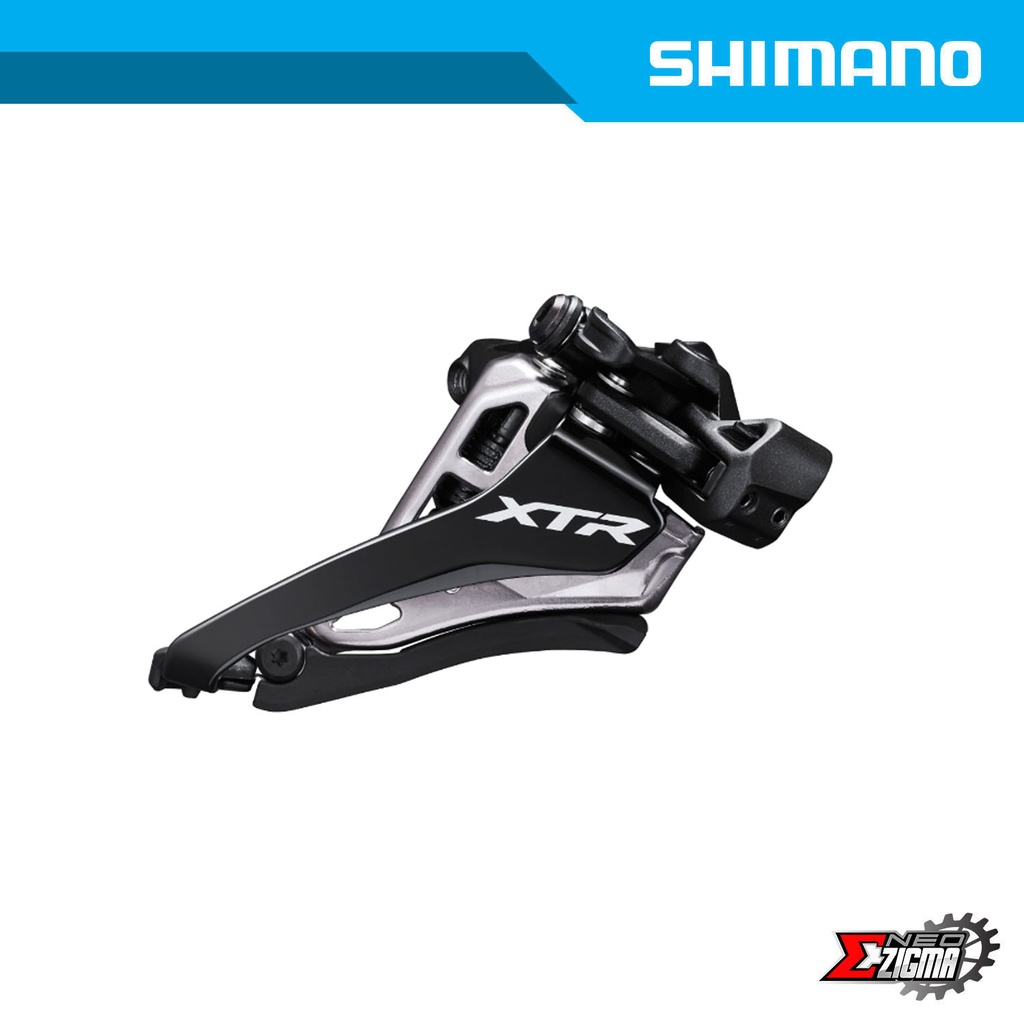

SHIMANO XTR - Front Derailleur - SIDE SWING - Clamp Band Mount - MTB 2x12-speed
The apogee of mechanical MTB front derailleur technology, the SHIMANO XTR M9100 series front derailleurs combine the highest quality materials with a refined SIDE SWING design. They deliver light action, and confidant, secure shifting for aggressive trail riding.
FEATURES
Smooth shifting by SIDE SWING mechanism
D, E, M type mounts are available
M type mount requires adapter (ø34.9 mm)
For 38-28T crankset
Adapt 48.8 mm, 51.8 mm chainline
PRODUCT SPECIFICATIONS
MODEL NO
FD-M9100-M
SERIES
XTR M9100 Series
Color
Series color
Average weight
99
Remarks
* S-size adapter is available in OTC package only Chain line 48.8 mm, 51.8 mm compatible
Front speeds
2
Rear speeds
12
Compatible chain
HG 12-speed
Action|SIDE SWING
✔
Mount|Clamp Band (mm)|28.6
- *
Mount|Clamp Band (mm)|31.8
X (w/ M size adapter)
Mount|Clamp Band (mm)|34.9
✔
Cable route type|Front-Pull
✔
Chain line (mm)
48.8 (142 mm O.L.D.) 51.8 (148 mm O.L.D.)
Chain stay angle (deg.)
66-69
Top gear teeth
38T
Total capacity
10T
Angled stroke adjust screw
✔
Link bushings
6
Front Derailleur MTB SHIMANO XTR FD-M9100-M 2x12 Side Swing KFDM9100MM6
