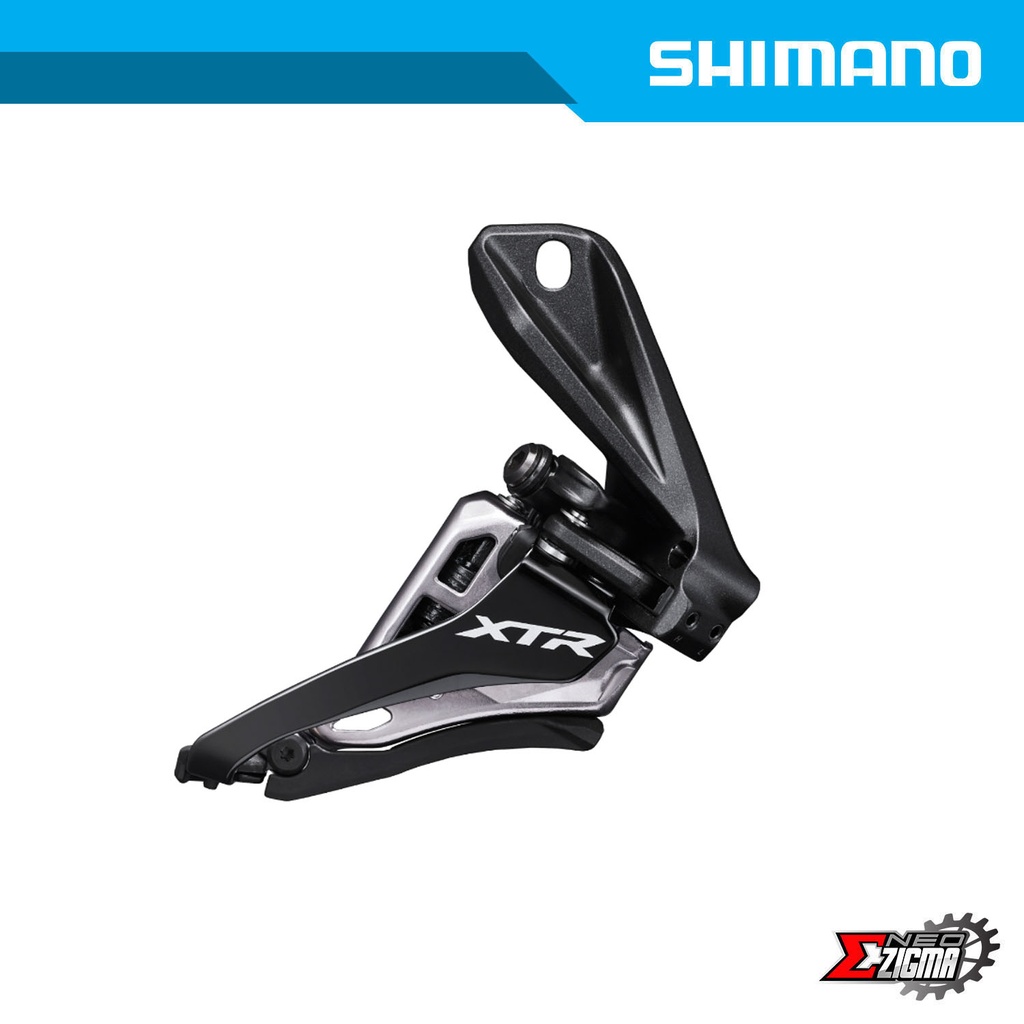

SHIMANO XTR - Front Derailleur - SIDE SWING - Direct Mount - MTB 2x12-speed
The apogee of mechanical MTB front derailleur technology, the SHIMANO XTR M9100 series front derailleurs combine the highest quality materials with a refined SIDE SWING design. They deliver light action, and confidant, secure shifting for aggressive trail riding.
FEATURES
Smooth shifting by SIDE SWING mechanism
D, E, M type mounts are available
For 38-28T crankset
Adapt 48.8 mm, 51.8 mm chainline
PRODUCT SPECIFICATIONS
MODEL NO
FD-M9100-D
SERIES
XTR M9100 Series
Color
Series color
Average weight
110
Front speeds
2
Rear speeds
12
Compatible chain
HG 12-speed
Action|SIDE SWING
✔
Mount|Direct mount
✔
Cable route type|Front-Pull
✔
Chain line (mm)
48.8 (142 mm O.L.D.) 51.8 (148 mm O.L.D.)
Chain stay angle (deg.)
66-69
Top gear teeth
38T
Total capacity
10T
Angled stroke adjust screw
✔
Link bushings
6
