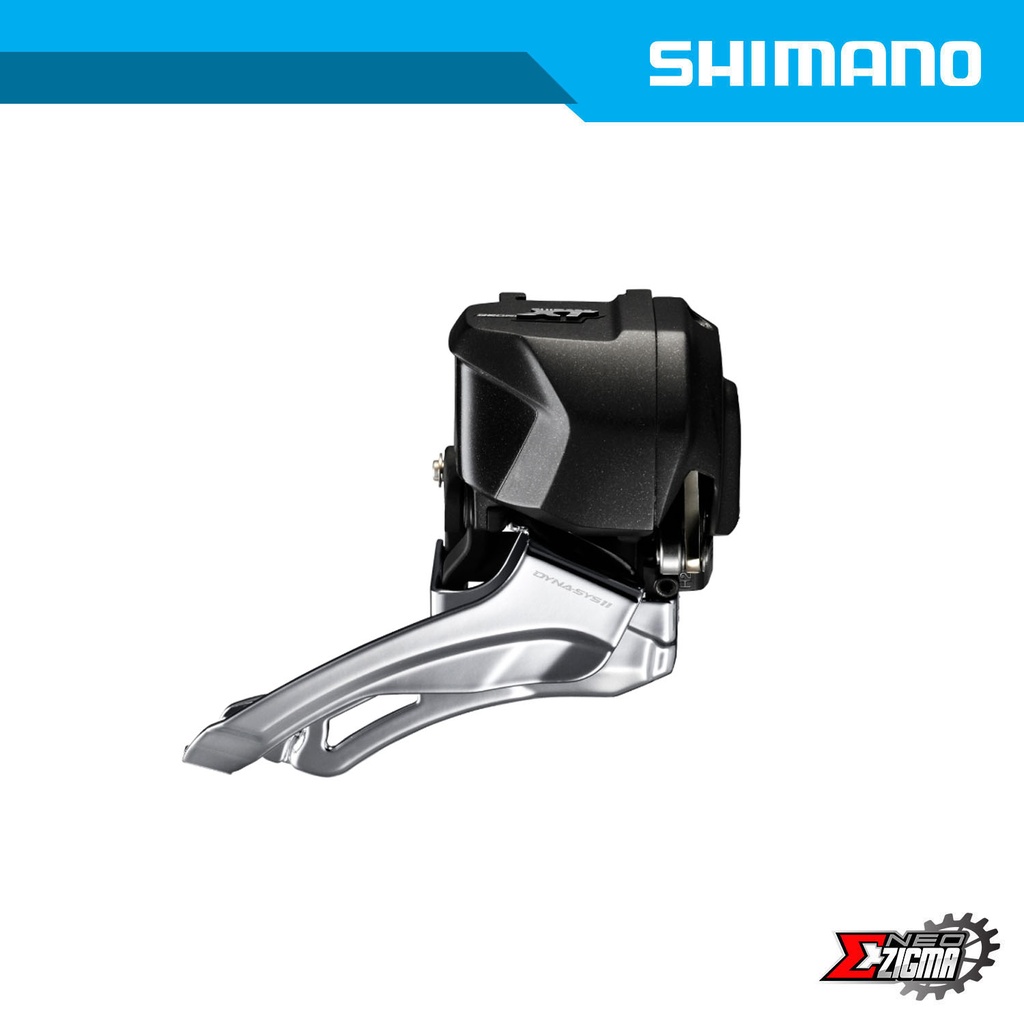

SHIMANO DEORE XT - DI2 - Front Derailleur - Down Swing - 2x11-speed
Compatible with SHIMANO SYNCHRONIZED SHIFT mode, the SHIMANO DEORE XT M8070 DI2 front derailleur offers accurate, stable front 2x11 shifting. It delivers increased power over mechanical versions and rider-programmable shift mapping.
FEATURES
Accurate and stable shifting in any condition
Instant response
Customized shift speed within Multi-shift
Powerful shifting
Increased power vs. mechanical
Smart and efficient gear selection with SHIMANO SYNCHRONIZED SHIFT
Single lever operation
Rider-programmable shift mapping
PRODUCT SPECIFICATIONS
MODEL NO
FD-M8070
SERIES
DEORE XT M8050 Series
Color
Series color
Average weight
134
Remarks
* For FC 3 mm outboard spec, 51.8 mm ** Compatible with the special crankset which chain line is 3 mm outboard.
Front speeds
2
Rear speeds
11
Compatible chain
LINKGLIDE, HG 11-speed
Action|Down Swing
✔
Mount|Clamp Band (mm)|28.6
w/ SM-FD905-L, SM-FD905-H
Mount|Clamp Band (mm)|31.8
w/ SM-FD905-L, SM-FD905-H
Mount|Clamp Band (mm)|34.9
w/ SM-FD905-L, SM-FD905-H
Mount|E-type|Without bottom bracket plate
w/ SM-FD905-E**
Mount|Direct mount
w/ SM-FD905-D**
Chain line (mm)
48.8*
Chain stay angle (deg.)
66 - 69
Top gear teeth
38-34T
Total capacity
10T
Link bushings
7
Firmware update by E-TUBE PROJECT
✔
SD50 port (pcs)
1
SD300 port (pcs)
0
SD50 connector (pcs)
0
SD300 connector (pcs)
0
Front Derailleur MTB SHIMANO XT Di2 FD-M8070 2x11 Down Swing Ind. Pack IFDM8070
