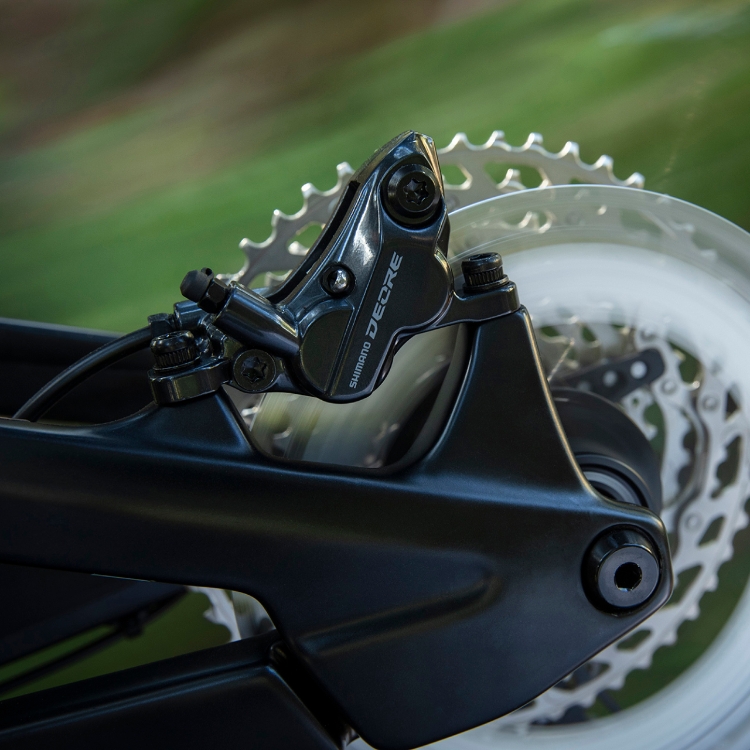

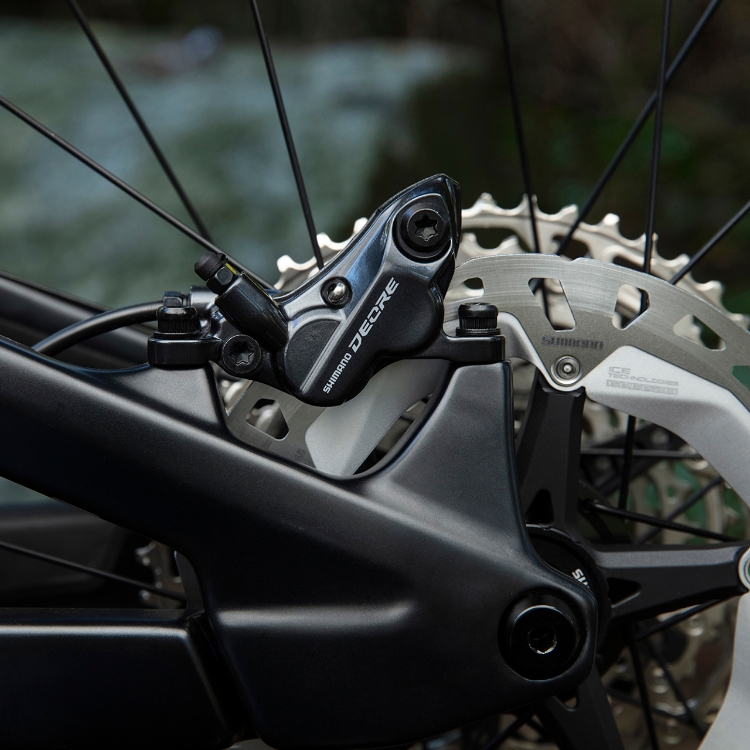

The SHIMANO DEORE M6120 caliper features consistent braking performance and reliable stopping power in all conditions. The 4-piston caliper instills greater downhill confidence and control.
FEATURES
Superior modulation gives you the power you need
Quick piston retraction
High power 4-piston disc brake caliper
PRODUCT SPECIFICATIONS
MODEL NO
BR-M6120
SERIES
DEORE M6100 Series
Color
Series color | Black (SHIMANO logo) ***
Remarks
*: Only compatible with resin pad
Brake type
Hydraulic disc brake
Brake hose (Kit)
SM-BH90-SS
Hose joint
Straight
Brake hose color (kit)|1
Black
J-Kit spec (for OEM)
✔
Pad|Standard 1
D03S-RX Resin (w/o fin)
Pad|Option 1
D02S-MX Metal (w/o fin)
Recommended brake lever
BL-M6100
Recommended disc brake rotor
SM-RT54 *, SM-RT56 *, SM-RT64, SM-RT66
Compatible Brake Rotor Size|140 mm (SS)
✔
Compatible Brake Rotor Size|160 mm (S)
✔
Compatible Brake Rotor Size|180 mm (M)
✔
Compatible Brake Rotor Size|203 mm (L)
✔
Compatible brake rotor size|220 mm (LL)
✔
Oil
SHIMANO mineral
ONE WAY BLEEDING
✔
Mount type
Post type
Piston
4
Caliper fixing bolt|Tool size
5 mm
Caliper fixing bolt|Anti loosen method
Snap ring
Pad mount
Split pin (stainless steel)

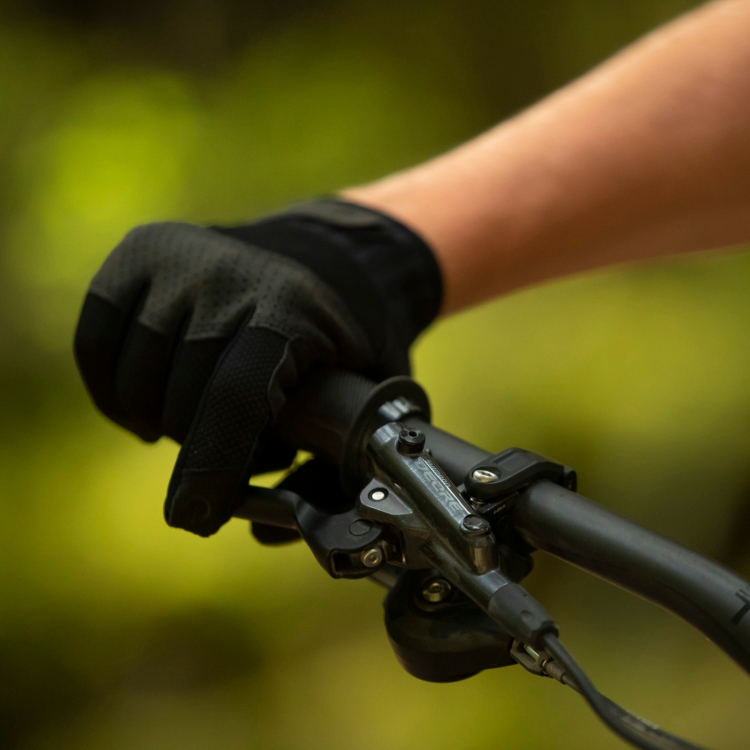

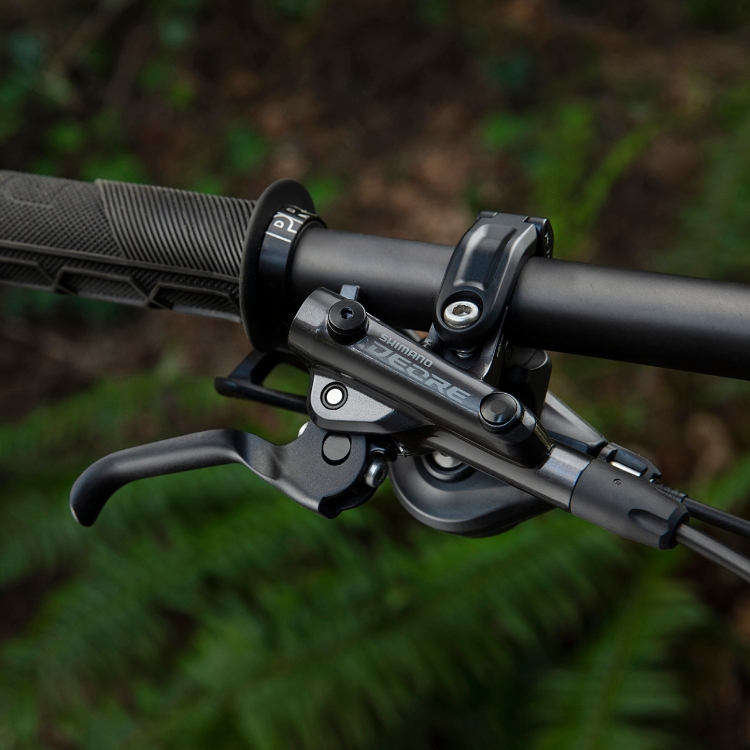

SHIMANO DEORE - Hydraulic Disc Brake Lever - I-SPEC EV
With quicker brake engagement and shorter free stroke, the SHIMANO DEORE BL-M6100 brake lever delivers intuitive braking so you can stay focused on the trail ahead. The I-SPEC EV shift lever offers a wider adjustment range for superior rider tuning.
FEATURES
Intuitive and powerful braking
Quicker brake engagement with shorter free stroke
Rider tunable and action-optimized cockpit
High-performance brake control
Additional contact point for a stiffer brake lever
10 deg. rotation angle setting range for I-SPEC EV shifting lever
PRODUCT SPECIFICATIONS
MODEL NO
BL-M6100
SERIES
DEORE M5100 Series
Color
Series color | Black (SHIMANO Logo)
Brake type
Hydraulic disc brake
Lever size (finger)
2
Brake hose (Kit)
SM-BH90-SS
Hose joint
Straight
Brake hose color (kit)|1
Black
J-Kit spec (for OEM)
✔
SERVO WAVE
✔
Reach adjust|Tool
✔
Compatible shift lever mount|Clamp band
✔
Compatible shift lever mount|I-SPEC EV
✔
Clamp band|Open clamp
✔
Shift lever rotation angle adjust range (I-SPEC EV ; deg.)
