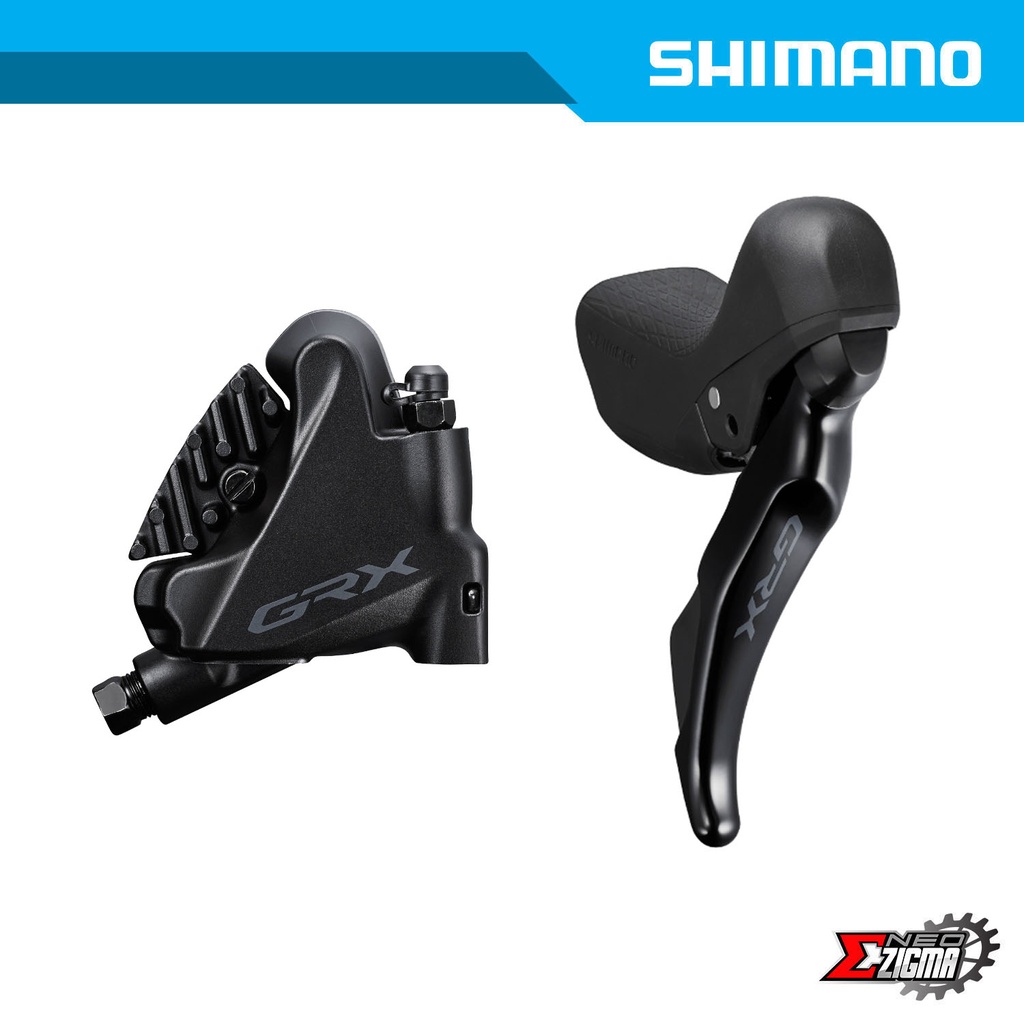

With a low-profile Flat Mount design, the SHIMANO GRX BR-RX400 hydraulic disc brakes provide greater control for mixed terrain riding.
FEATURES
Never hesitate to tackle rough surfaces
Excellent heat dissipation
ICE TECHNOLOGIES
Flat mount
Simple set up and maintenance
Convenient tool access
Easy hose joint system (J-kit)
Simple wheel replacement
Easy and clean bleeding system
ONE WAY BLEEDING
PRODUCT SPECIFICATIONS
MODEL NO
BR-RX400-R
SERIES
GRX 10-speed
Color
Series color
Remarks
Front spec with adaptor
Brake type
Hydraulic disc brake
Brake hose (Kit)
SM-BH90-JK-SSR SM-BH90-J-SSR
Hose joint
Straight
Brake hose color (kit)|1
Black
J-Kit spec (for OEM)
✔
ICE TECHNOLOGIES pad compatible caliper
✔
Pad|Standard 1
K05S-RX Resin (w/o fin)
Pad|Standard 2
L05A-RF Resin (w/ fin)
Pad|Option 1
K04S-MX Metal (w/o fin)
Pad|Option 2
L04C-MF Metal (w/ fin)
Fixing screw spec for rear mount|10 mm mount
✔
Fixing screw spec for rear mount|15 mm mount
✔
Fixing screw spec for rear mount|20 mm mount
✔
Fixing screw spec for rear mount|25 mm mount
✔
Fixing screw spec for rear mount|30 mm mount
✔
Fixing screw spec for rear mount|35 mm mount
✔
Recommended brake lever
ST-RX400
Recommended disc brake rotor
SM-RT64
Oil
SHIMANO Mineral
ONE WAY BLEEDING
✔
Mount type
Flat mount
Piston
2
Caliper fixing bolt|Tool size
4 mm
Caliper fixing bolt|Anti loosen method
Screw fixing pin, snap ring
Pad mount
Pad axle
SHIMANO GRX - Hydraulic Disc Brake - DUAL CONTROL LEVER - 10-speed
The SHIMANO GRX DUAL CONTROL LEVER delivers light and responsive shifting for mixed-terrain riding. The ergonomic shifter design improves comfort and the textured, anti-slip brake lever increases control on bumpy terrain.
FEATURES
Greater mixed-terrain control
Gravel inspired lever and bracket ergonomics
Anti-slip brake lever
Same light shifting operation as top tier road systems
