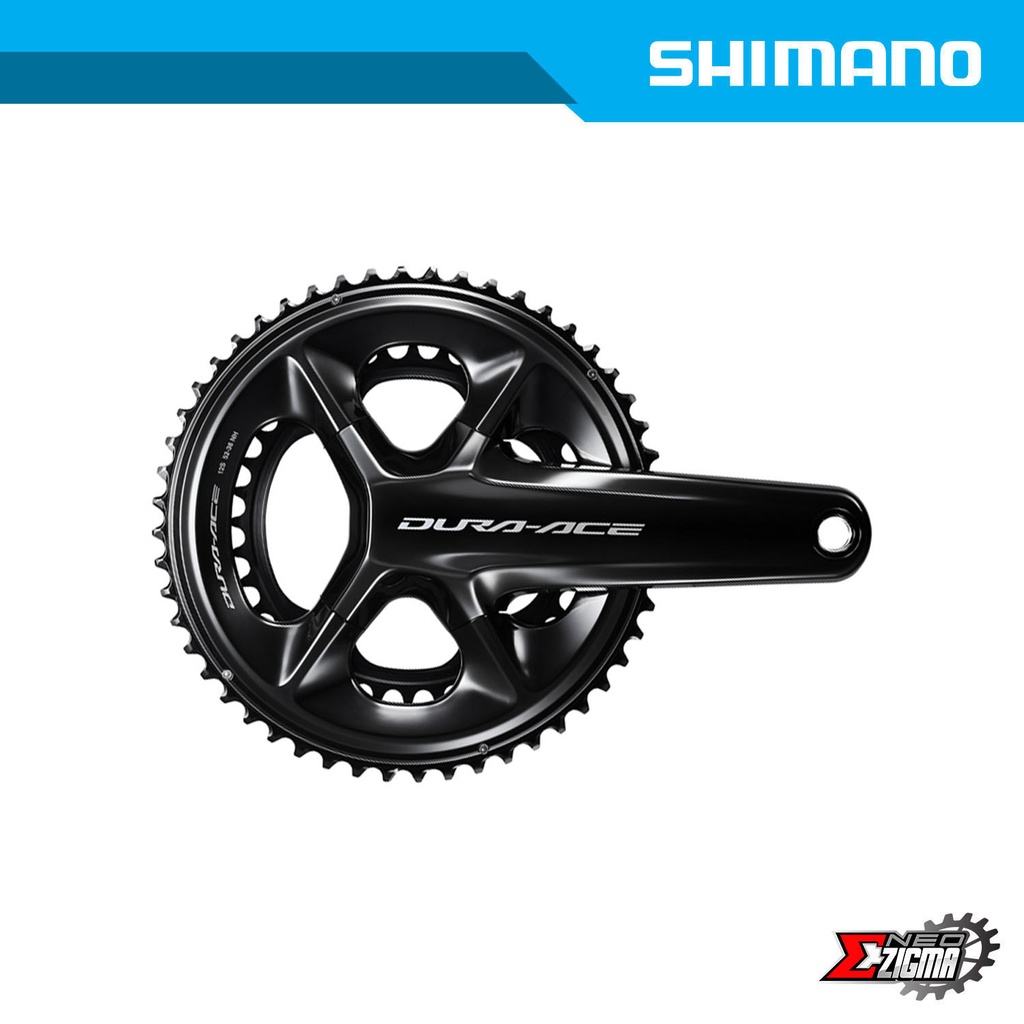

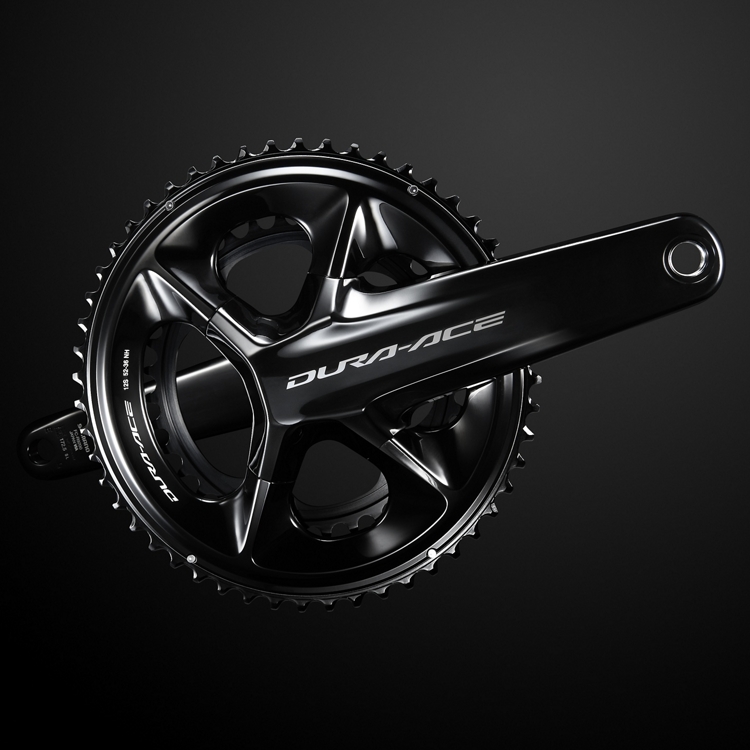

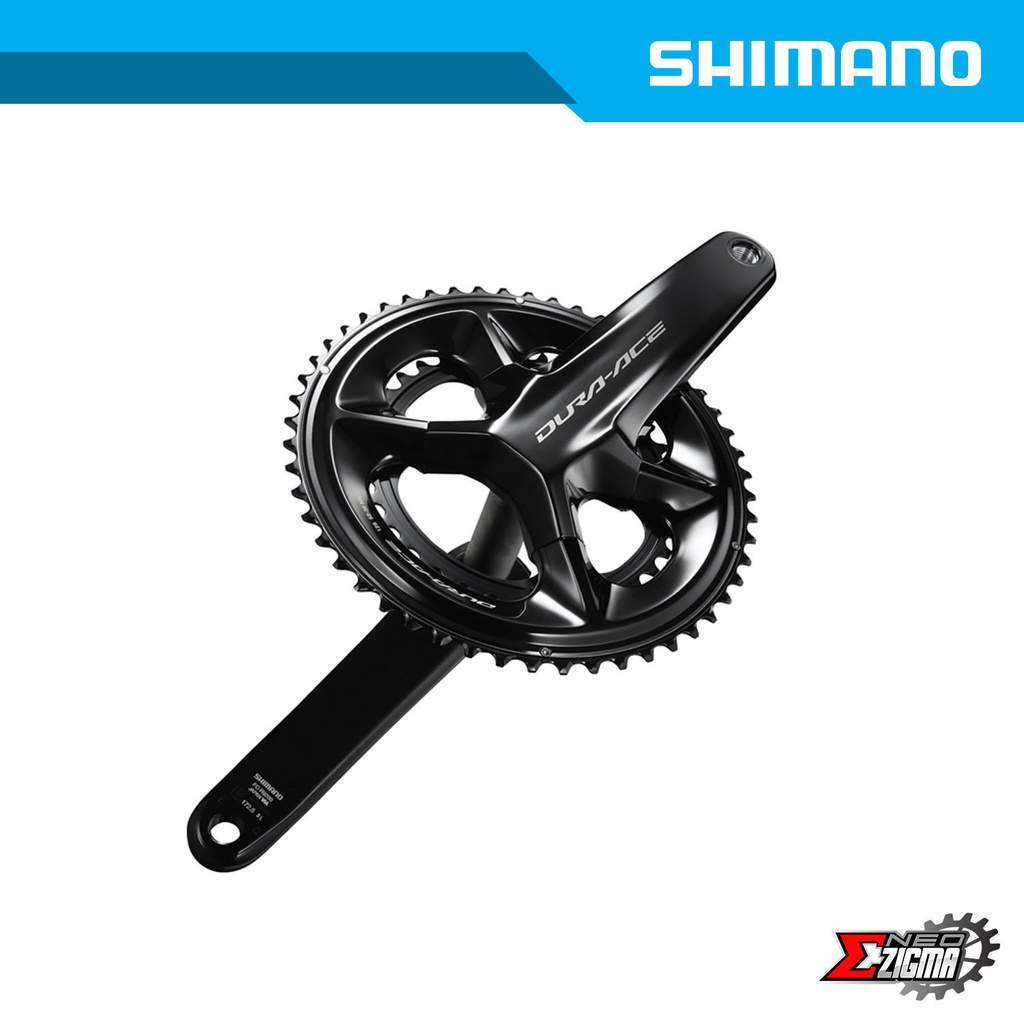

DURA-ACE FC-R9200 crank, the heart of the bicycle, ensures that no portion of your pedal stroke is wasted. With hollow arms and chainrings, weight is kept to a minimum but stiffness and shifting precision is maximized.
The DURA-ACE FC-R9200 crank performs two vital functions: transferring your pedaling effort into the drivetrain and ensuring the fastest, most precise front shifting available. With HOLLOWTECH II crank arms to ensure light weight and Shimano's class-leading chainring designs, the FC-R9200 won't let you down. The FC-R9200 is offered in even shorter crank arms lengths to offer fit options for any rider.
Features :
Optimal balance of stiffness, strength, weight and rotational performance HOLLOWGLIDE structure cuts weight yet maintains strength for better power transfer and quicker, more precise front shifting
New 54-40T option to realize the most efficient drivetrain
PRODUCT SPECIFICATIONS
MODEL NO
FC-R9200
SERIES
DURA-ACE R9200 Series
Color
Series color
Average weight
685 (50-34T) 714 (54-40T) 692 (52-36T)
Rear speeds
12
Compatible chain
HG 12-speed
Chain line (mm)
44.5
P.C.D. (mm)
110
Spider/gear arms
4
Chainring combination
46-36T (NEW), 50-34T, 52-36T, 54-40T
Q-factor (mm)
148
Crank arm length (mm)|160
✔
Crank arm length (mm)|165
✔
Crank arm length (mm)|167.5
✔
Crank arm length (mm)|170
✔
Crank arm length (mm)|172.5
✔
Crank arm length (mm)|175
✔
Crank arm length (mm)|177.5
✔
Optional chain guard|Without chain/bash guard
✔
HOLLOWTECH II
✔

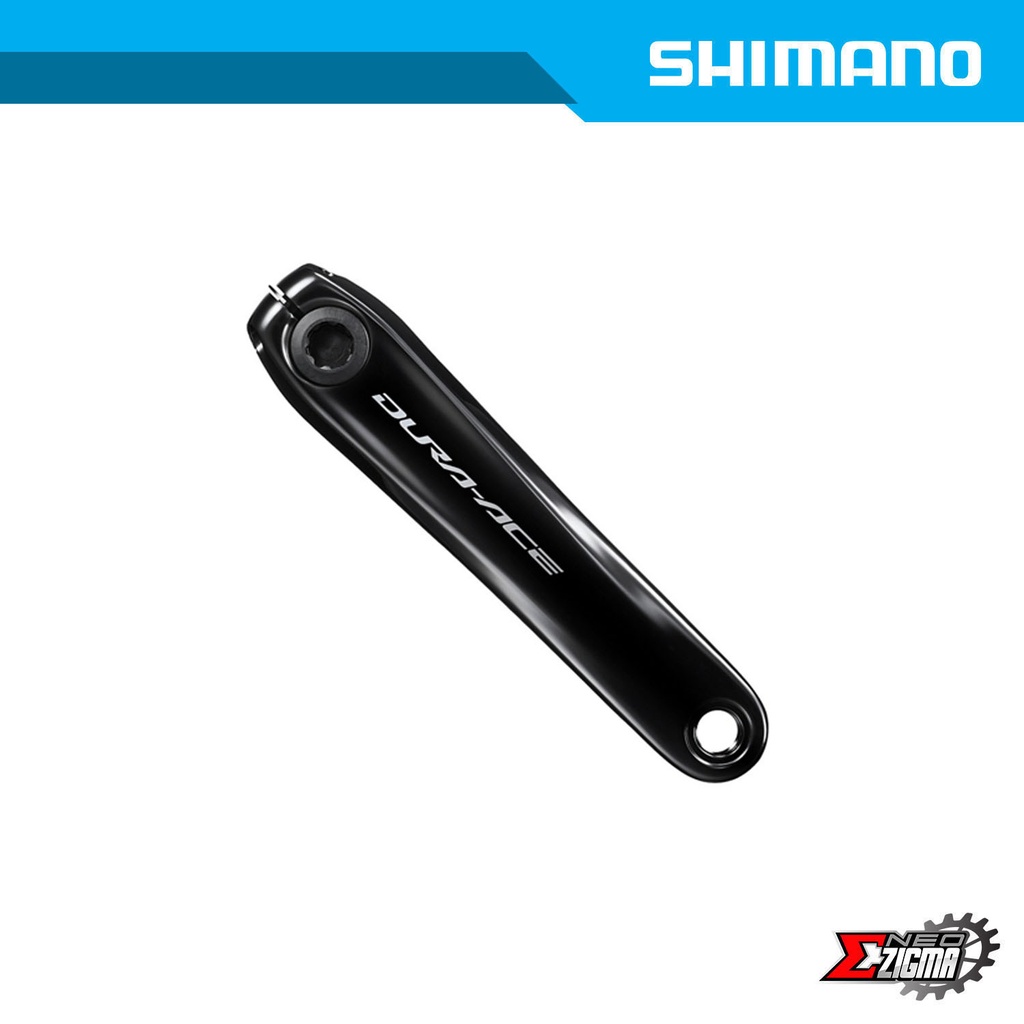

HOLLOWTECH crank arm
✔
HOLLOWGLIDE
✔
Compatible bottom bracket type|Outboard
✔
Recommended bottom bracket|Threaded (normal)
BB-R9100
Recommended bottom bracket|Press-Fit
SM-BB92-41B
Threaded bottom bracket shell width (mm)|68
✔
Threaded bottom bracket shell width (mm)|70
✔
Crank fixing screw included
✔
Specifications
Size
46x36x160mm 12-Spd or
46x36x165mm 12-Spd or
46x36x170mm 12-Spd or
50x34x160mm 12-Spd or
50x34x165mm 12-Spd or
50x34x167.5mm 12-Spd or
50x34x170mm 12-Spd or
50x34x172.5mm 12-Spd or
52x36x160mm 12-Spd or
52x36x165mm 12-Spd or
52x36x167.5mm 12-Spd or
52x36x170mm 12-Spd or
52x36x172.5mm 12-Spd or
54x40x160mm 12-Spd or
54x40x165mm 12-Spd or
54x40x170mm 12-Spd or
54x40x172.5mm 12-Spd
