Caliper Brake Road SHIMANO Tiagra BR-4700 F/R Ind. Pack EBR4700A87

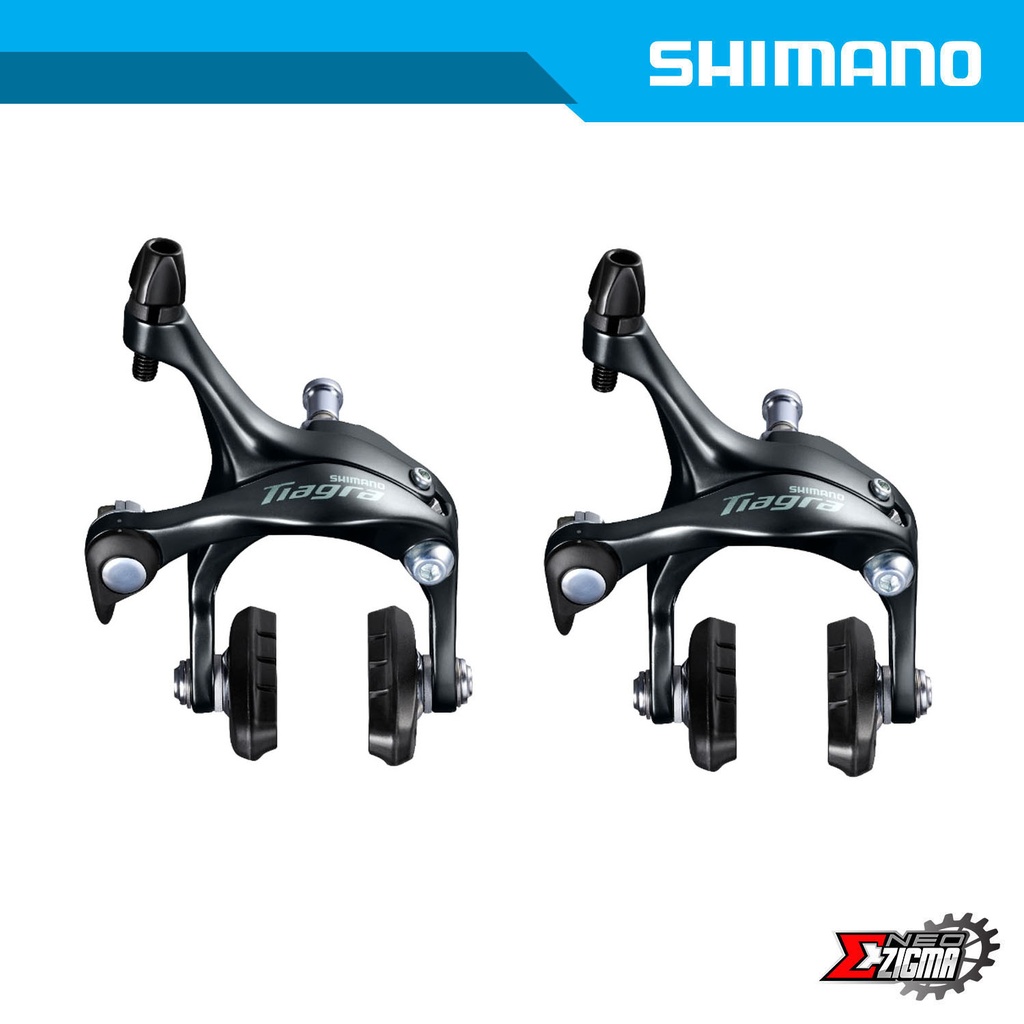

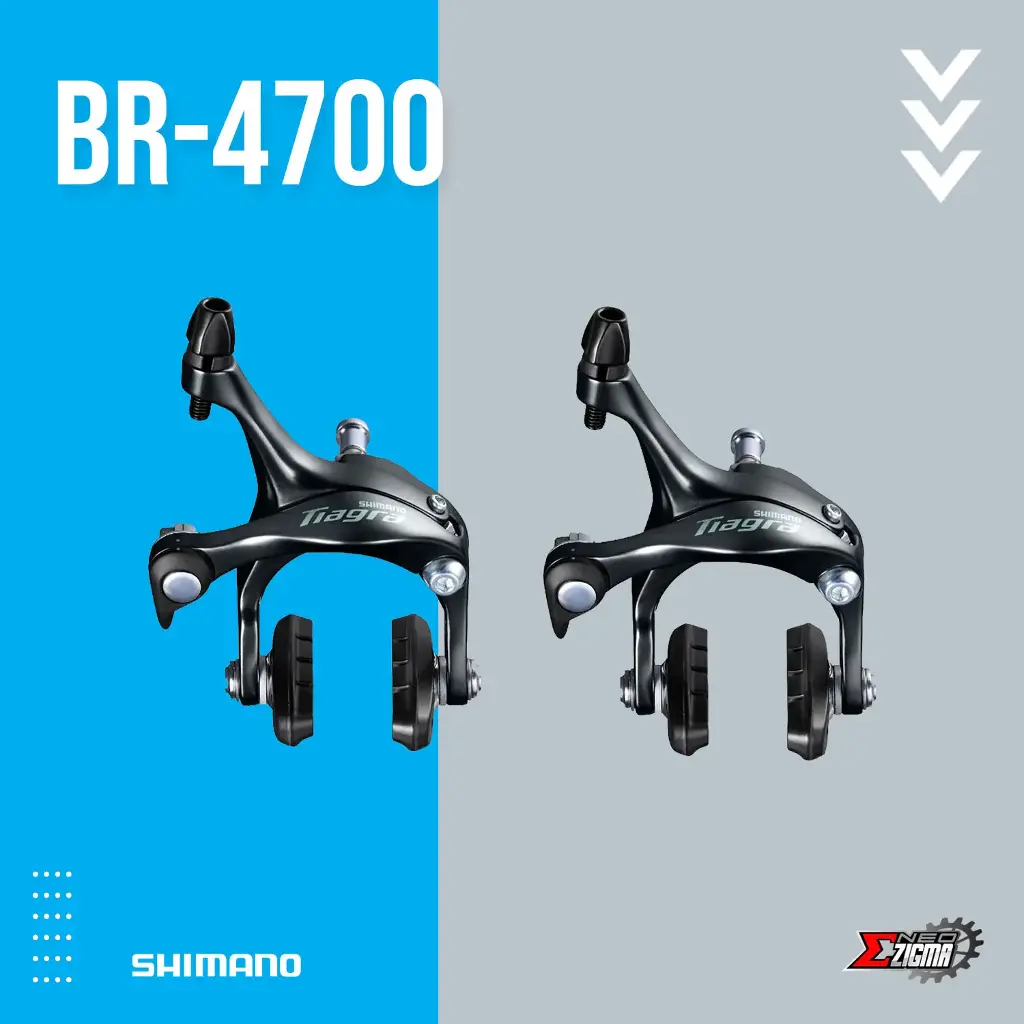

SHIMANO TIAGRA - NEW SUPER SLR - Dual-Pivot Brake Caliper - Rim Brake

The SHIMANO TIAGRA Dual-Pivot brake caliper provides consistent all-around control. Compatible with 28mm tires, the caliper uses a thrust bearing pivot to reduce friction while new, toe-in adjustable brake shoes improve braking

.FEATURES

• Consistent all-around control
• 30% greater braking power modulation with Linear brake operation
• One thrust bearing of pivot reduces caliper friction
• New material adjustable toe-in brake shoes R50T5
• Better performance with Alloy rim under wet condition
• Toe-in adjustable brake shoes
• Compatible with 28C tires

PRODUCT SPECIFICATIONS

MODEL NO	BR-4700
SERIES	TIAGRA 4700 Series
Color	Series color
Brake type	NEW SUPER SLR Dual pivot

Reach (mm)	51
Brake shoe|Standard	R50T5
Brake shoe|Optional choice	R50T4
Compatibility	NEW SUPER SLR
Assembly pivot nut (mm)|Front (mm)|10.5	✔
Assembly pivot nut (mm)|Front (mm)|12.5	✔
Assembly pivot nut (mm)|Front (mm)|18.0	✔
Assembly pivot nut (mm)|Front (mm)|27.0	✔
Assembly pivot nut (mm)|Front (mm)|32.0	✔
Assembly pivot nut (mm)|Rear (mm)|10.5	✔
Quick release lever	✔
Shoe angle adjusting	✔
Maximum tire size	28C
Rim width (mm)	19 - 26 mm

•
