With SHIMANO's SLR-EV dual symmetric pivot design, the short-arm DURA-ACE R9200 series caliper brakes employ twin bearings and a roller to realize greater efficiency and deliver superior modulation and stopping power. They are offered in traditional and direct mount options.
FEATURES
Exceptional balance of rigidity, weight and stopping power
Maximum tire size: 28C
Lightweight magnesium brake shoe holder
PRODUCT SPECIFICATIONS
MODEL NO
BR-R9200
SERIES
DURA-ACE R9200 Series
Color
Series color
Average weight
327 ( /pair)
Brake type
SLR-EV Dual Pivot
Reach (mm)
51
Brake shoe|Standard
R55C4
Brake shoe|Optional choice
R55C4 Carbon R55C4-A Carbon R55CT4
Compatibility
SLR-EV
Assembly pivot nut (mm)|Front (mm)|10.5
✔
Assembly pivot nut (mm)|Front (mm)|12.5
✔
Assembly pivot nut (mm)|Front (mm)|18.0
✔
Assembly pivot nut (mm)|Front (mm)|27.0
✔
Assembly pivot nut (mm)|Front (mm)|32.0
✔
Assembly pivot nut (mm)|Rear (mm)|10.5
✔
Cartridge shoe holder
✔
Tire guide bumpers
✔
Quick release lever
✔
Shoe angle adjusting
✔
Maximum tire size
28C
Rim width (mm)
20.8 - 28 mm
Titanium cable fixing bolt
✔
Titanium pivot bolt
✔

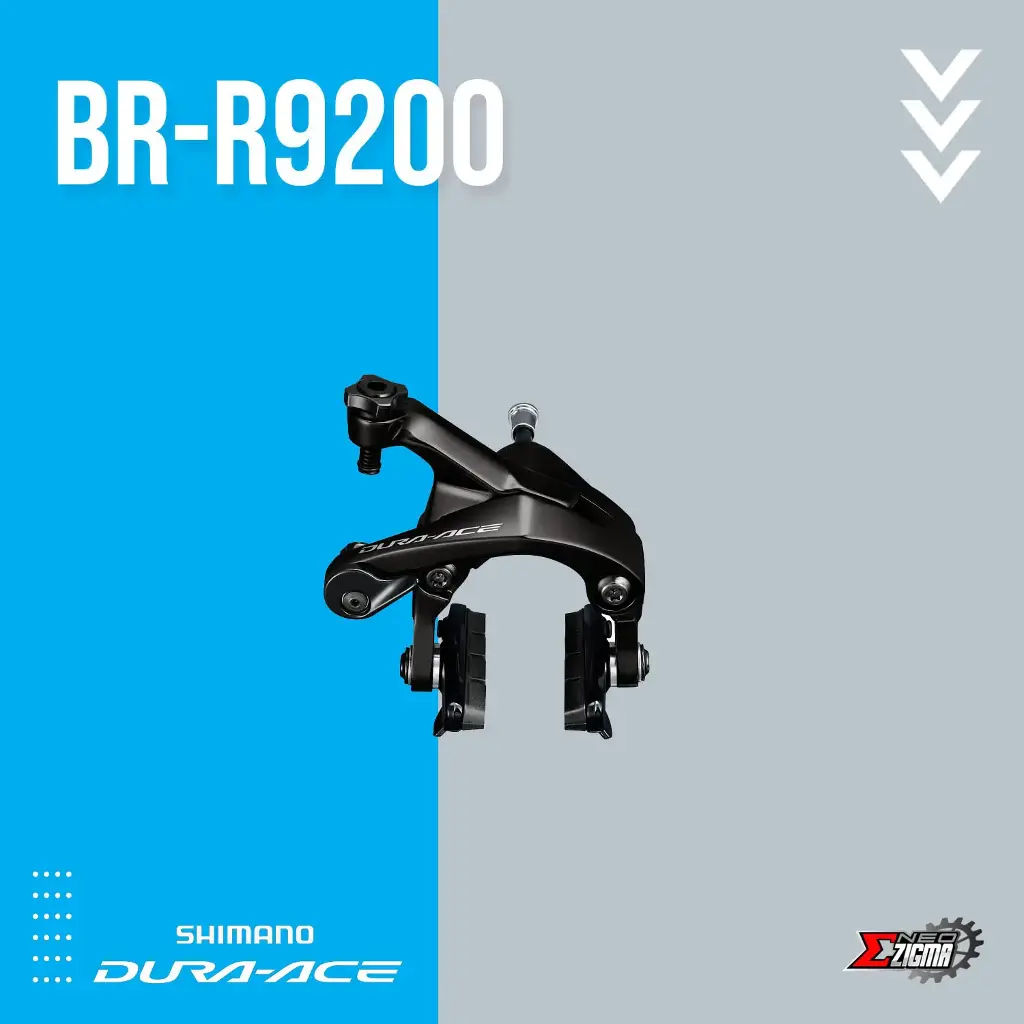

Caliper Brake Road SHIMANO Dura-Ace BR-R9200 Front Ind. Pack IBRR9200AF82X
