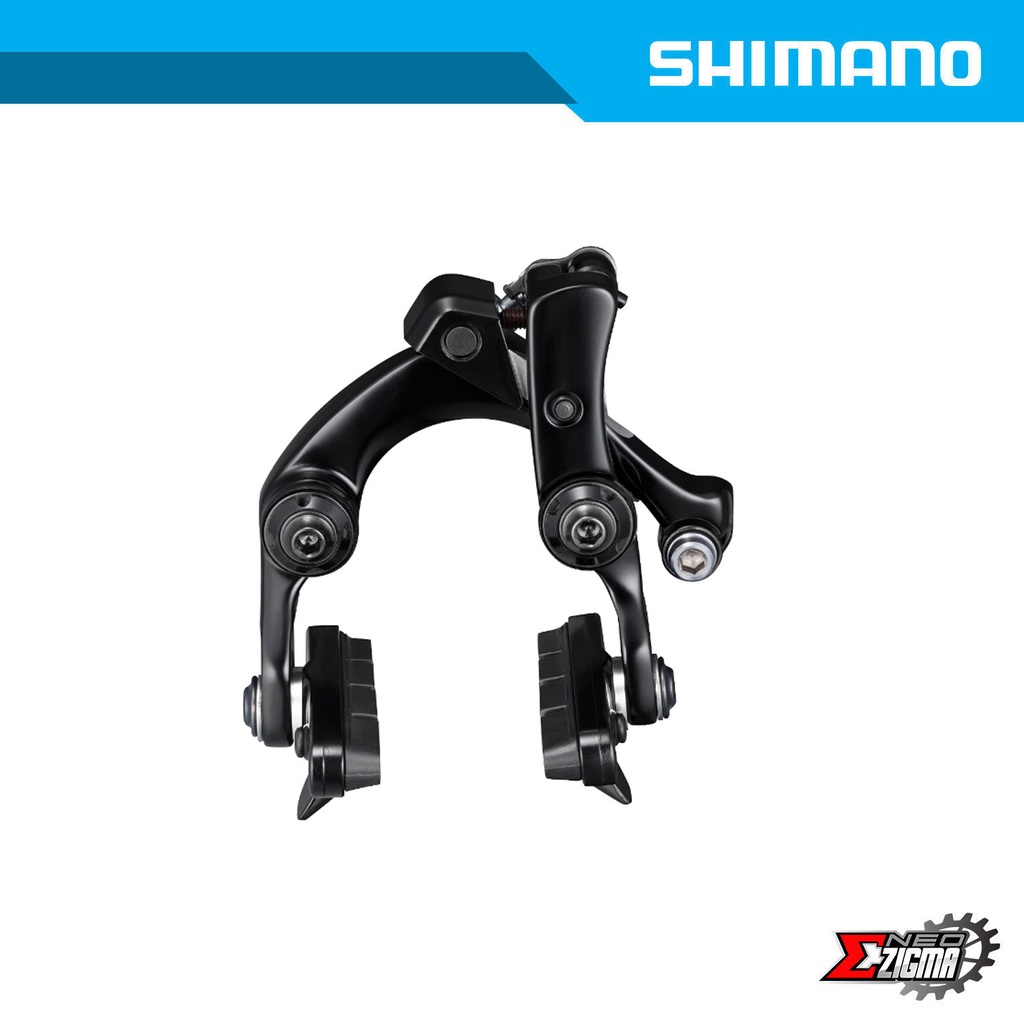

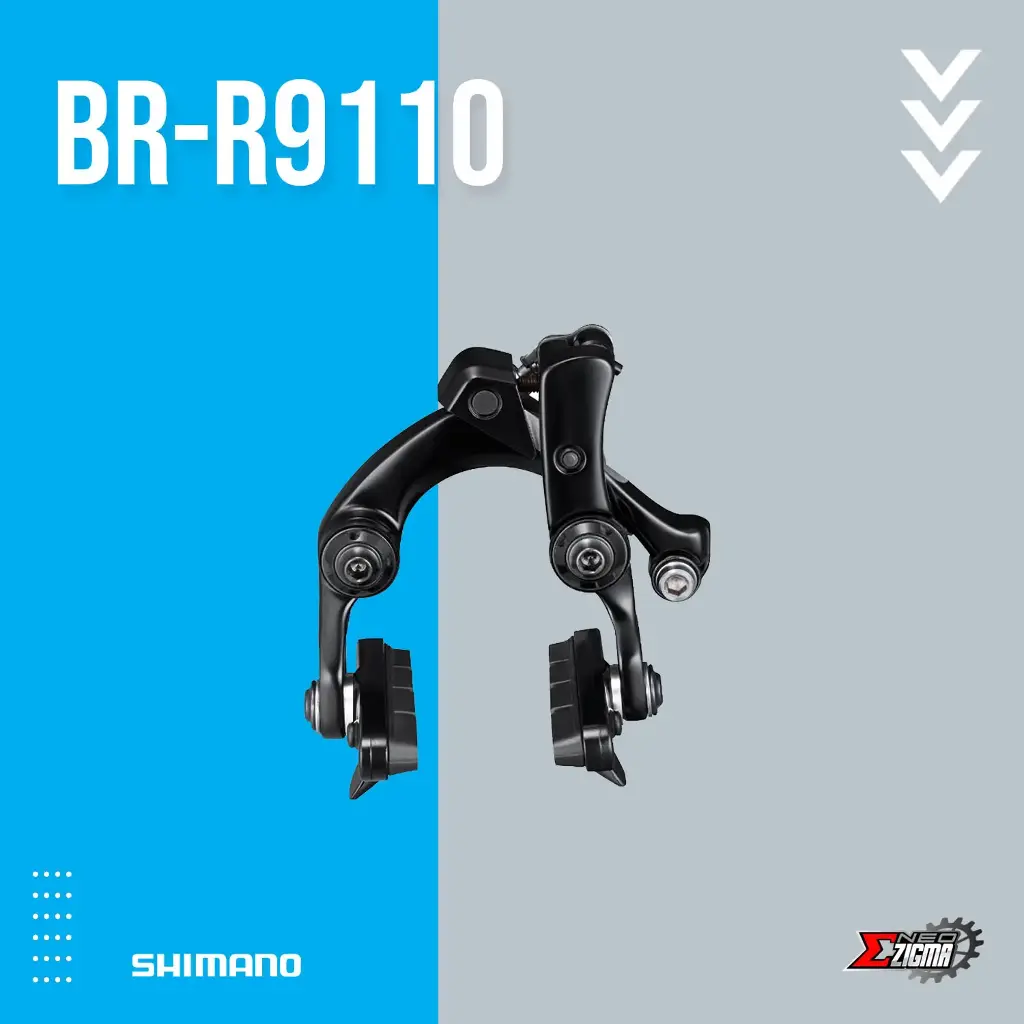

DURA-ACE - Under Bottom Bracket Mount - Rear Brake Caliper - SLR-EV - Rim Brake
With SHIMANO's SLR-EV dual symmetric pivot design, the short-arm DURA-ACE R9100 series caliper brakes employ twin bearings and a roller to realize greater efficiency and deliver superior modulation and stopping power. They are offered in traditional and direct mount options.
FEATURES
Increased overall braking performance
Integrated sleek low-profile caliper design
Better clearance for wider tire
Comfortable riding with wider tire on rough road
Better clearance for wider tire
Compatible with 28C tire size
Intuitive braking control
Smooth and light operation
SLR-EV technology
PRODUCT SPECIFICATIONS
MODEL NO
BR-R9110-R
SERIES
DURA-ACE R9100 Series
Color
Series color
Average weight
139 ( /pc)
Remarks
Need inline cable adjuster (SM-CB90) for cable adjusting and quick release feature.
Brake type
Direct mount type
Reach (mm)
51
Brake shoe|Standard
R55C4
Brake shoe|Optional choice
R55C4 Carbon R55C4-A Carbon R55CT4
Compatibility
SLR-EV
Cartridge shoe holder
✔
Tire guide bumpers
✔
Shoe angle adjusting
✔
Spring tension adjusting
✔
Maximum tire size
28C
Rim width (mm)
20.8 - 28 mm
Titanium cable fixing bolt
✔
Titanium pivot bolt
X (fixing screw)
Caliper Brake Road SHIMANO Dura-Ace BR-R9110 Direct Mount Under B.B Mount For T/T Rear Ind. Pack IBRR9110R82
